Application example

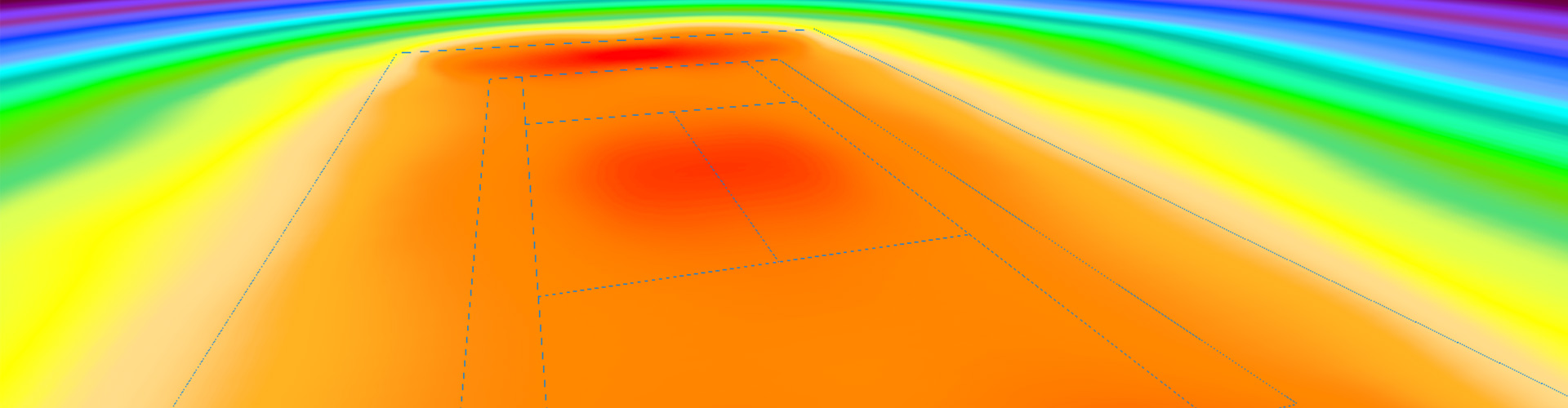

Tennis court lighting with SPORT-2X2-FT4 and -FT6
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
According to outdoor tennis court requirements in EN 12193 “Light and lighting – Sports lighting”
Setup:
| Application: | Tennis court lighting |
| Requirements: | EN 12193 “Light and lighting – Sports lighting” |
| Area for calculations: | 36 m x 18 m |
| Optics: | SPORT-2X2-FT4 and -FT6 |
| Number of poles: | 6 pcs |
| Installation heigth: | 9 m |
| Total output: | 520 klm |
Results:
| Average: | 500 lx |
| Uniformity: | 0.70 |
| GR max (CIE112): | 41 |
| C18450_SPORT-2X2-FT4 | ||
| C18451_SPORT-2X2-FT4-HT | Variant from High Temperature PMMA. | |
| C17410_SPORT-2X2-FT6 | ||
| C18289_SPORT-2X2-FT6-HT | Variant from High Temperature PMMA. |
