Luminaire example

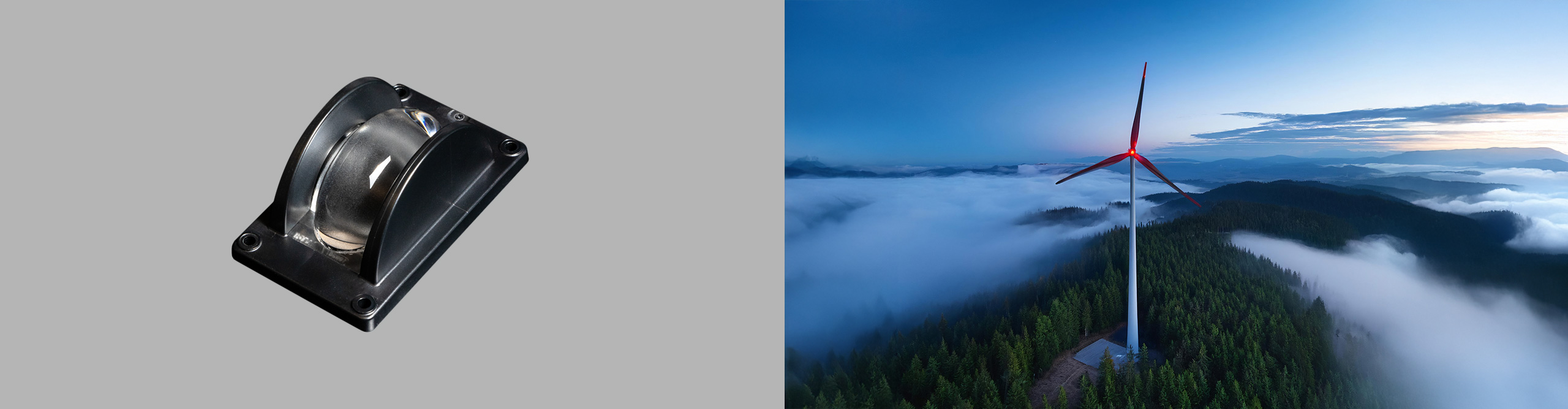

Obstruction light with CORAL-IP.
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
Setup:
| Optics: | CORAL-IP-OW |
| Each CORAL optic with: | |
| 2 red LEDs: | 240 lm |
| 5 white LEDs: | 600 lm |
Results:
| Daytime | |
| Max value at 0°: | 2188 cd (requirement 2000 cd ± 25 %) |
| Vertical viewing angle: | ~7° (requirement ≥3°) |
| Nighttime | |
| Max value at 0°: | 25 412 cd (requirement 20 000 cd ± 25 %) |
| Vertical viewing angle: | ~7° (requirement ≥3°) |
Obstruction light with CORAL-IP.
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
