Application example

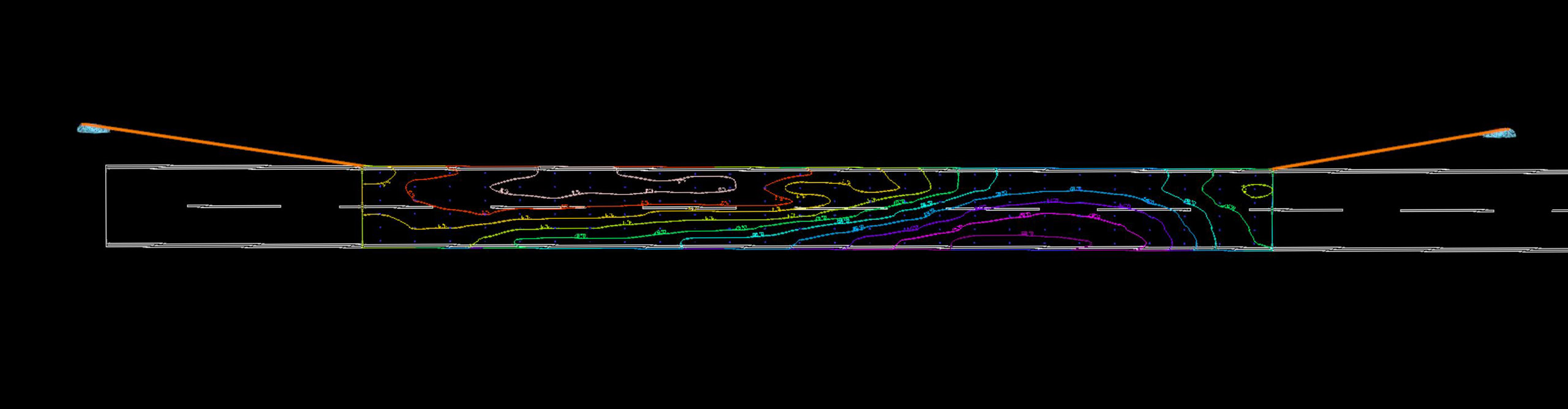

M3 street lighting with STRADELLA-8-HV-MEW3 (C2 wet)
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
Setup:
| Application: | Street lighting |
| Roadway class: | M3 |
| Tarmac: | C2 (wet) |
| Optics: | STRADELLA-8-HV-MEW3 |
| LED: | 3030 |
| Road width: | 7 m |
| Number of lanes: | 2 |
| Arrangement: | Single side bottom |
| Pole distance: | 78 m |
| Mounting heigth: | 15 m |
| Overhang: | 0 m |
| Boom angle: | 5° |
| Boom length: | 0 m |
| Pole distance from roadway: | 0 m |
| Maintenance factor: | 0.9 |
| Total lumen output/luminaire: | 29 300 lm |
| Power consumption/km: | 3085 W |
| Energy consumption/year: | 950 kWh |
Results:
| Lm: | 1.00 |
| Uo: | 0.56 |
| Uow: | 0.20 |
| Ul: | 0.61 |
| TI: | 12 |
| REI: | 0.77 |
