Application example
M3 street lighting with C18437_STRADELLA-8-HV-ME3
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
STRADELLA-8-HV-ME3 in a nutshell
– Fulfills M3 and M4 requirements with ultra long pole distance
– For up to 1:6 pole height/distance ratio
– Very energy efficient street lighting
– Low TI% and high Ul
– Made from PMMA
– 49.5 x 49.5 mm
Setup:
| Application: | Street lighting |
| Roadway class: | M3 |
| Tarmac: | R3 |
| Optics: | STRADELLA-8-HV-ME3 |
| LED: | Flat 5050 |
| Road width: | 7.5 + 7.5 m |
| Number of lanes: | 4 |
| Arrangement: | Median |
| Pole distance: | 85 m |
| Mounting heigth: | 15 m |
| Overhang: | -1 m |
| Boom angle: | 5° |
| Boom length: | 2 m |
| Pole distance from roadway: | 3 m |
| Maintenance factor: | 0.8 |
| Total lumen output/luminaire: | 25 280 lm |
| Power consumption/km: | 4800 W |
| Energy consumption/year: | 1600 kWh |
Results:
| Lm: | 1.00 cd/m2 |
| Uo: | 0.45 |
| Ul: | 0.60 |
| TI: | 15 % |
| EIR: | 0.72 |

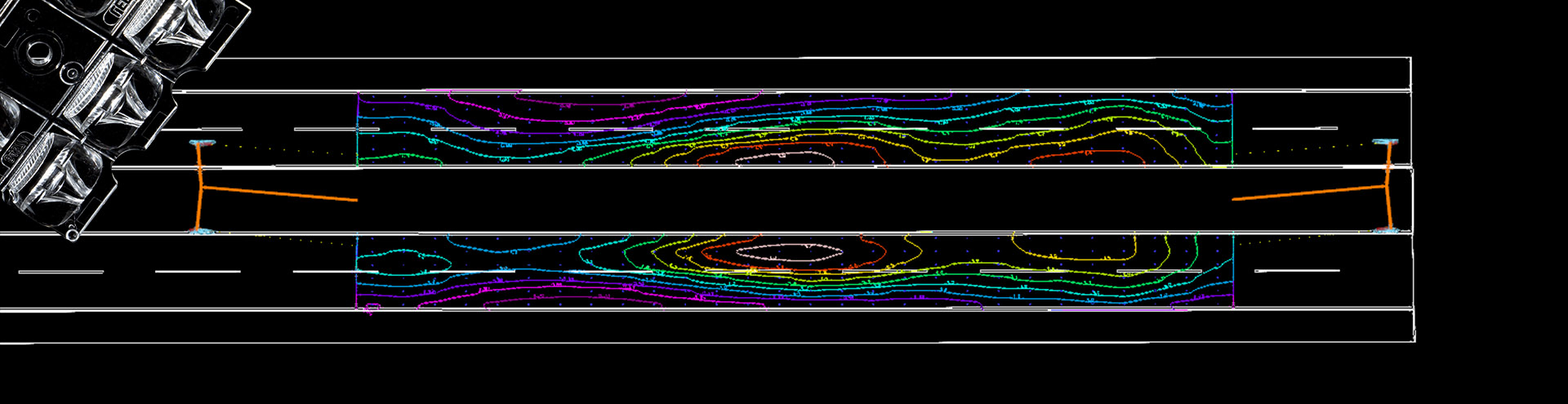

M3 street lighting with C18437_STRADELLA-8-HV-ME3
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
The information contained herein is the property of LEDiL Oy, Joensuunkatu 13, FI-24100 SALO, Finland and is subject to change without notice. Please visit www.ledil.com for additional information, such as the latest photometric files, 3D mechanical models, and application notes relating to handling, gluing and taping.
