APPLICATION EXAMPLE
M3 Street lighting with STRADA-2X2-LW1
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
SETUP:
| Application: | Street lighting |
| Roadway class: | M3 |
| Tarmac: | R3 |
| Optics: | STRADA-2X2-LW1 |
| LED: | 3535 High-Power |
| Road width: | 14 m |
| Number of lanes: | 4 |
| Arrangement: | single side, bottom |
| Pole distance: | 50 m |
| Mounting height: | 12 m |
| Overhang: | -2 m |
| Boom angle: | 5° |
| Boom lenght: | 1 m |
| Pole distance from roadway: | 3 m |
| Maintenance factor: | 0.67 |
| Total lumen output/luminaire: | 40 000 lm |
| Power consumption/km: | 5700 W |
| Energy consumption/year: | 1140 kWh |

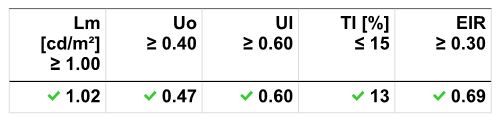

RESULTS (M3 class):
M3 Street lighting with STRADA-2X2-LW1
