APPLICATION EXAMPLE
Football pitch lighting with SPORT-IP-24
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

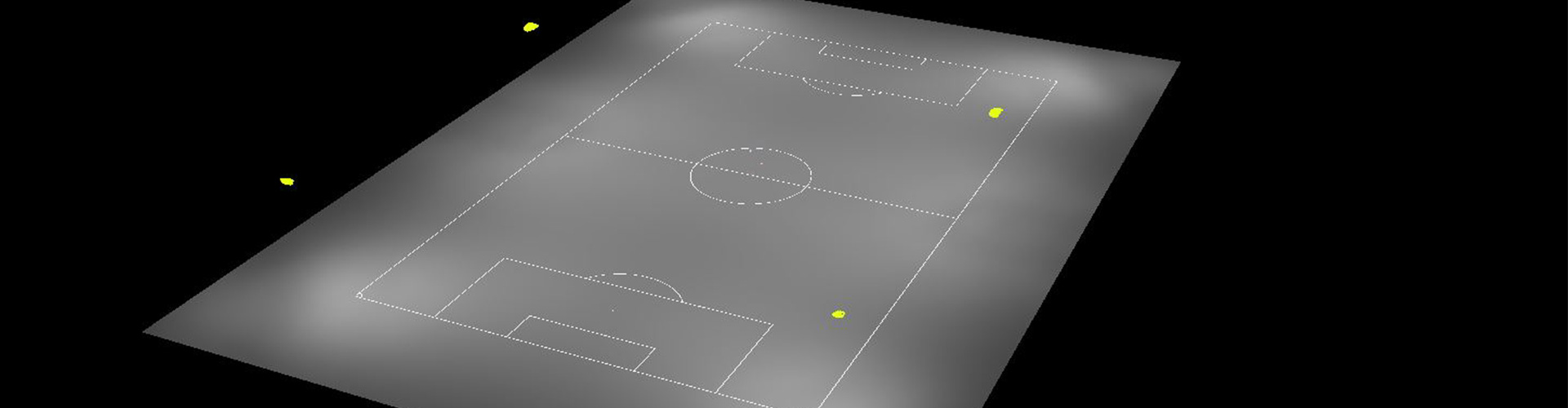

Football pitch
Lighting setup qualifies for post-curfew E4 (CIE 1917, IESNA 1999)
Setup:
| Application: | Football pitch lighting |
| Mounting height: | 18 m |
| Pitch size: | 105 x 65 m |
| LED: | 5050 |
| Optics: | SPORT-IP-24-FT6 (corners) & SPORT-IP-24-FT6W (centre) |
| Luminous flux (Corner poles): | 200 klm |
| Luminous flux (Centre poles): | 200 klm |
| Total luminous flux (Luminaires): | 1200 klm |
| Total power: | 8350 W |
Results:
| E Average (requirement ≥75 lx): | 75 lx |
| E Min: | 56 lx |
| E Max: | 117 lx |
| Uo (requirement ≥0.7): | 0.74 |
| Source intensity at 140 m: | 8.5 kcd |
| CS18942_SPORT-IP-24-FT6 | ||
| CS18971_SPORT-IP-24-FT6W | ||
| CS18999_SPORT-IP-24-FT6-HT | Variant from High Temperature PMMA. | |
| CS19001_SPORT-IP-24-FT6W-HT | Variant from High Temperature PMMA. |
