APPLICATION EXAMPLE

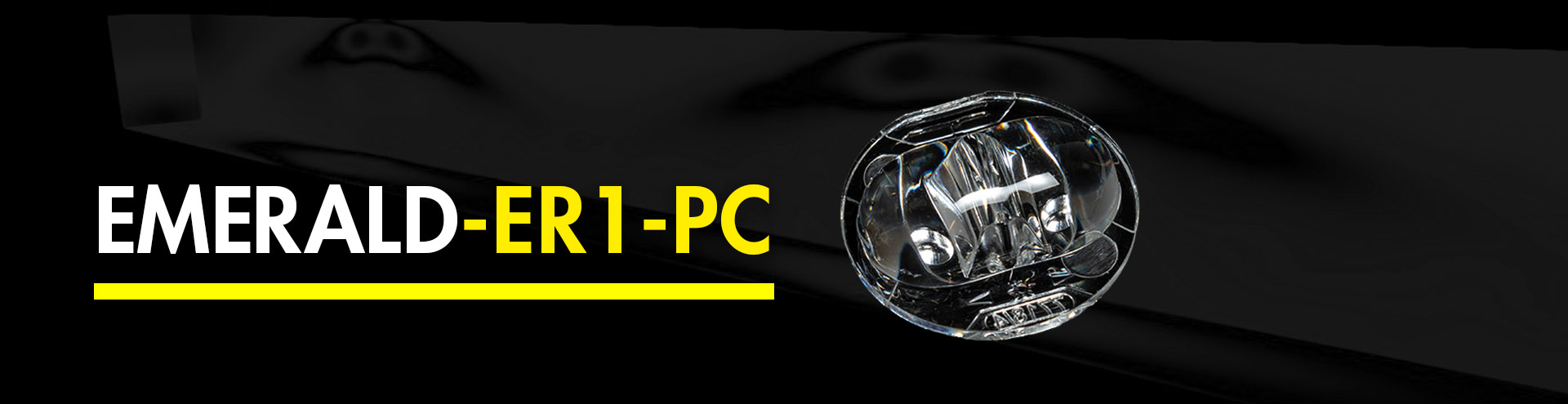

Escape route lighting with EMERALD-ER1
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
Three different setups using EMERALD-ER1 optics for escape route lighting.
| Setup: | 1. | 2. | 3. |
| Installation height: | 3 m | 3 m | 3 m |
| Hallway width: | 2 m | 2 m | 2 m |
| Luminous flux: | 80 lm | 180 lm | 350 lm |
| Luminaire spacing: | 13 m | 20 m | 24 m |
| Average (center line): | 1.42 lx | 2.12 lx | 3.45 lx |
| Min (center line): | 1.05 lx | 1.13 lx | 1.15 lx |
| Uo (min/ave): | 0.74 | 0.53 | 0.33 |
Escape route lighting with EMERALD-ER1
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
