Application example

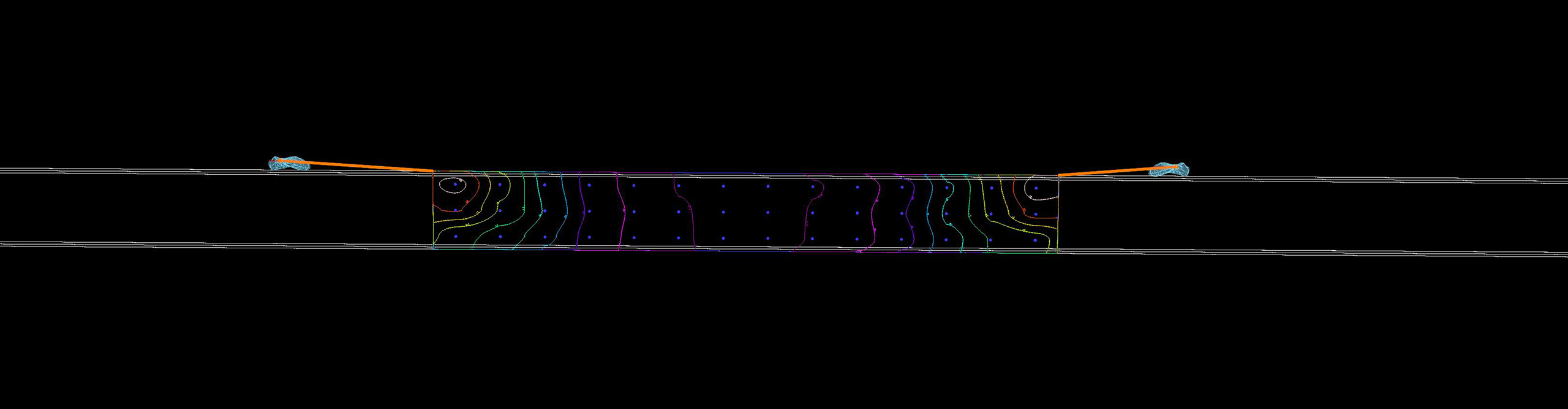

C3 street lighting with STRADA-IP-24-SCL
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
Setup:
| Application: | Street lighting |
| Roadway class: | C3 |
| Optics: | STRADA-IP-24-SCL |
| LED: | 5050 (flat) |
| Road width: | 5 m |
| Number of lanes: | 2 pcs |
| Pole distance: | 40 m |
| Mounting heigth: | 8 m |
| Overhang: | 0 m |
| Boom angle: | 0° |
| Boom length: | 0 m |
| Pole distance from roadway: | 0 m |
| Maintenance factor: | 0.8 |
| Total lumen output/luminaire: | 10 785 lm |
| Power consumption/km: | 1845 W |
| Energy consumption/year: | 295 kWh |
Results:
| Eav: | 15.11 lx |
| Uo: | 0.40 |
| C3 illuminance requirements: | Passed |
