Application example
C3 street and P1 pedestrian lighting with STRADA-2X2-5050-T2-R
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
STRADA-2X2-5050-T2-R is a highly efficient and innovative reflector design for urban area lighting. It directs light to the road without glare and with minimal energy consumption.
Read more here: www.ledil.com/news_all/strada-2×2-brightness-without-glare/
Setup:
| Application: | Street lighting |
| Roadway class: | C3 |
| Tarmac: | R3 |
| Optics: | STRADA-2X2-5050-T2-R |
| LED: | 5050 |
| Road width: | 8 m |
| Number of lanes: | 2 m |
| Pedestrian walkway width: | 3.5 m |
| Pole distance: | 30 m |
| Mounting heigth: | 8 m |
| Overhang: | 0 m |
| Boom angle: | 0° |
| Boom length: | 0 m |
| Pole distance from roadway: | 0 m |
| Maintenance factor: | 0.8 |
| Total lumen output/luminaire: | 8100 lm |
| Power consumption/km: | 1812 W |
| Energy consumption/year: | 220 kWh |
Results:
| Luminous intensity class: | G6 |
| C3 illuminance requirements | Passed |
| TI: | 1 |
| Em: | 15.00 |
| Uo: | 0.49 |
| P1 illuminance requirements | Passed |
| TI: | 1 |
| Em: | 16.21 |
| Emin: | 3.73 |

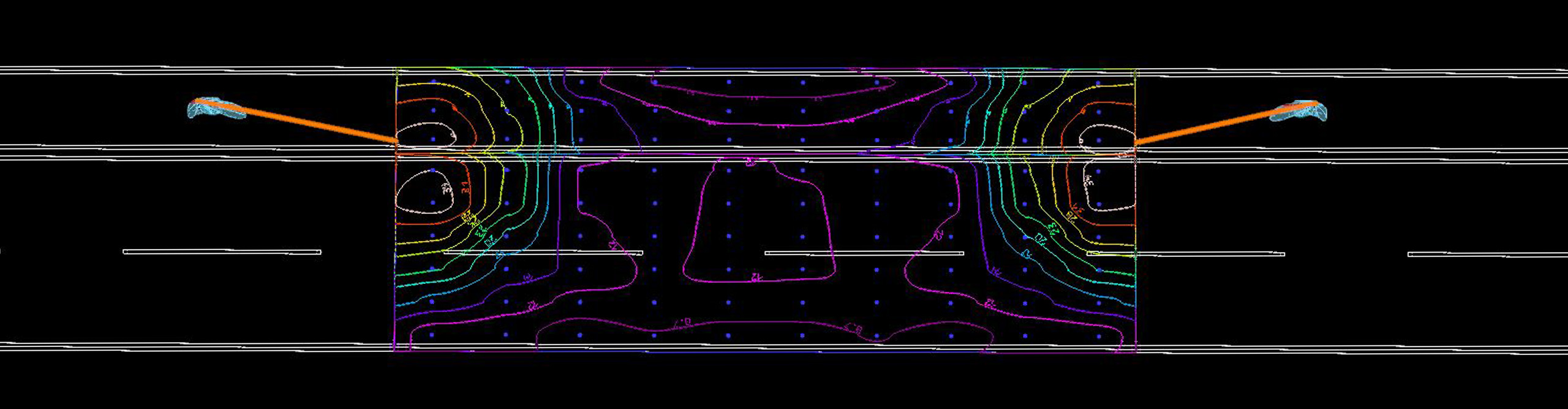

C3 street and P1 pedestrian lighting with STRADA-2X2-5050-T2-R
