CA13631_G2-LAURA-O-P
Print

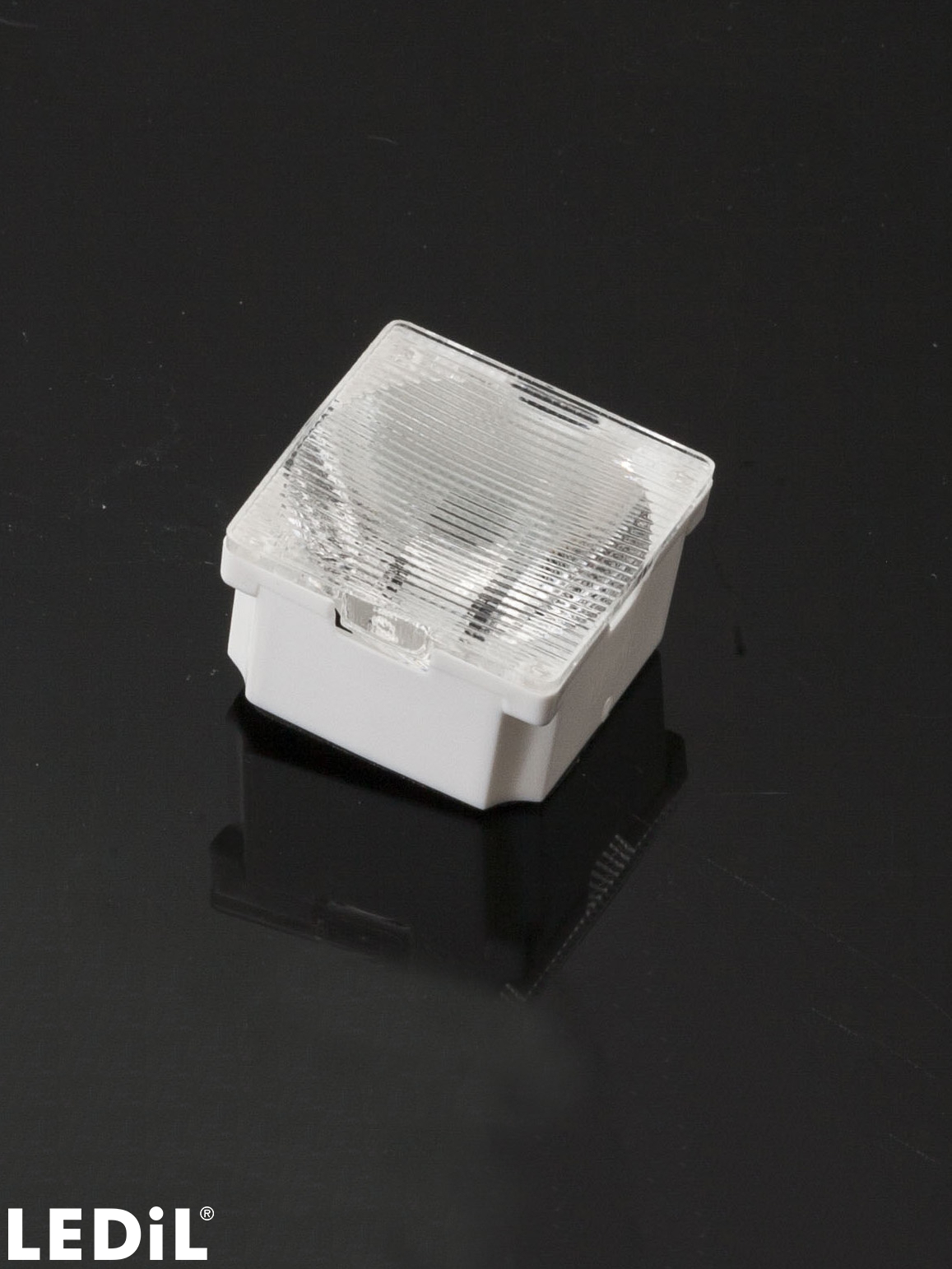

~40° x 13° oval beam. Assembly with thinner white holder, installation tape and location pins.
Materials
- LAURA-O, Single lens, PMMA
- LAURA-LT-PIN-XP-HLD-WHT, Holder, PC
- ROSE-TAPE, Tape, Acrylic foam
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content

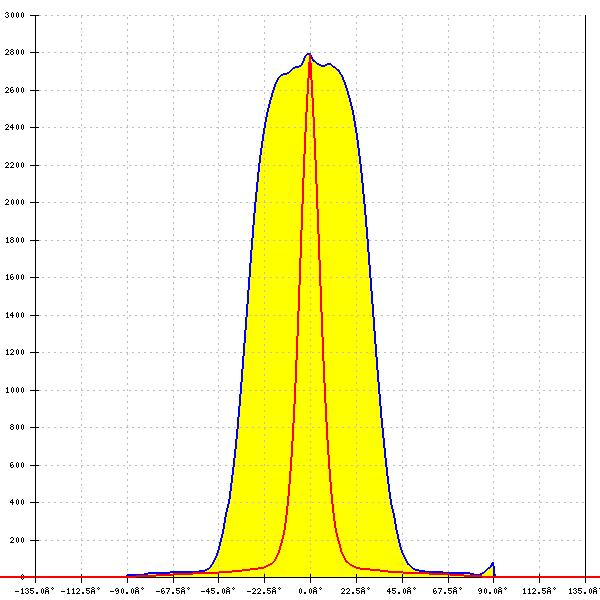

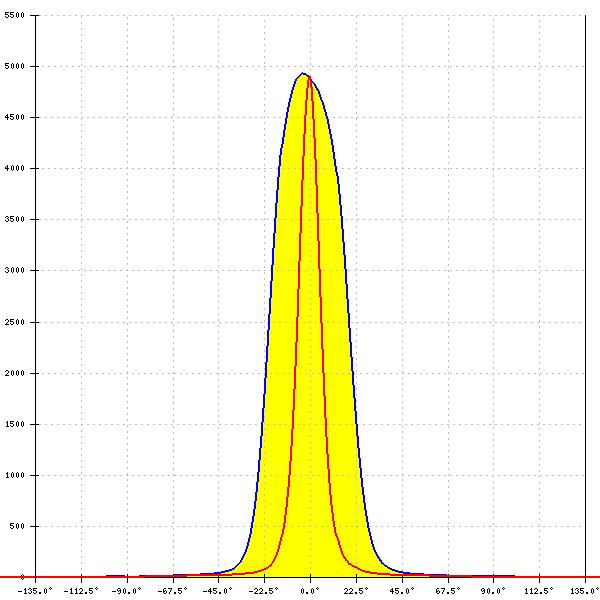

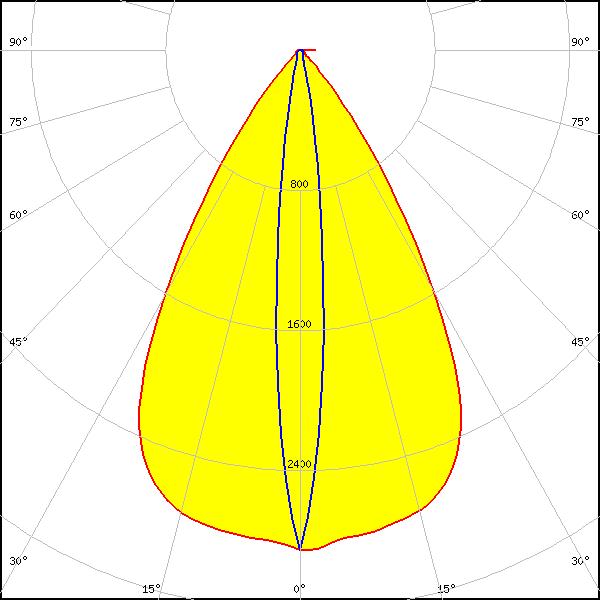

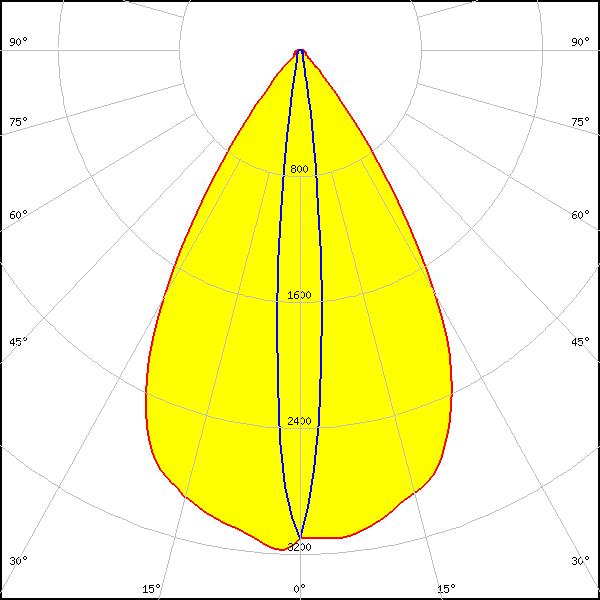

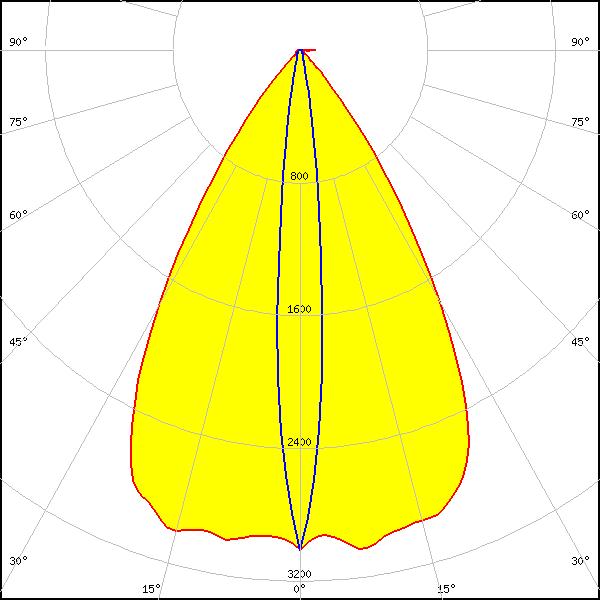

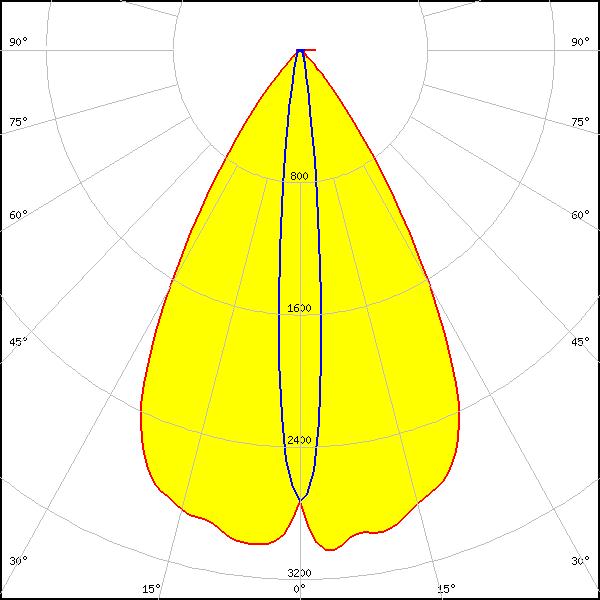

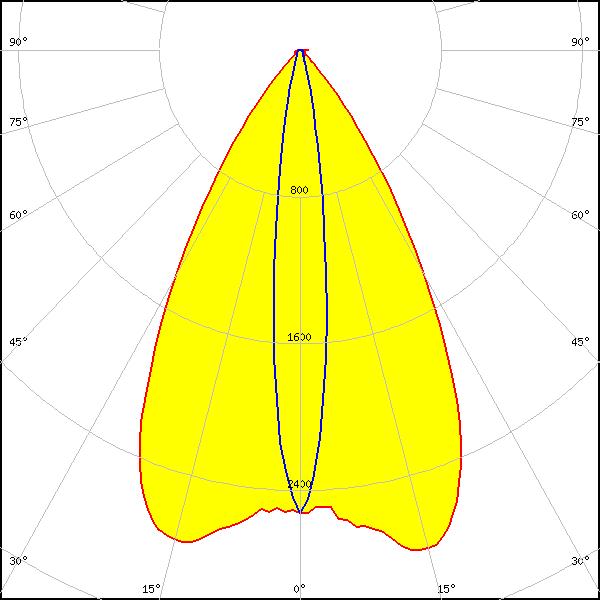

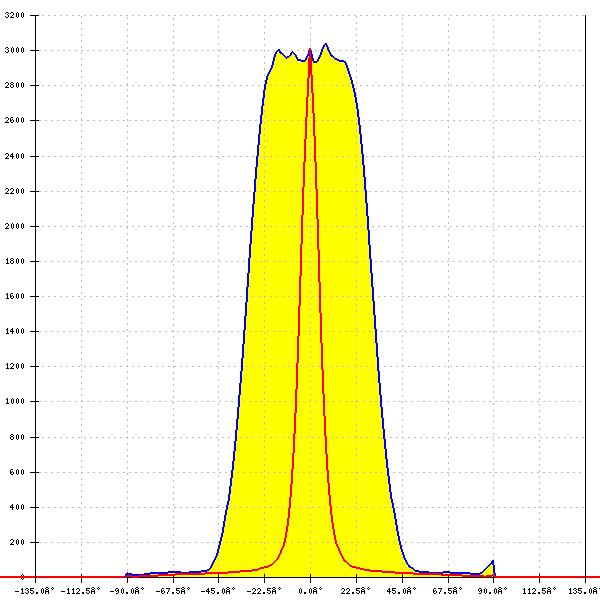

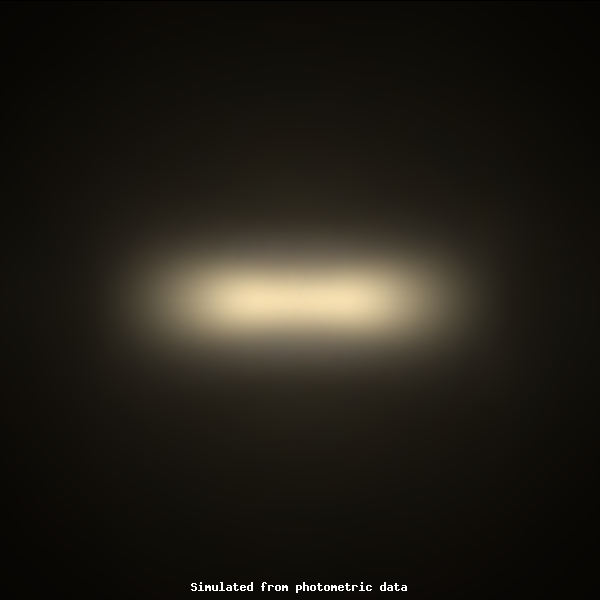

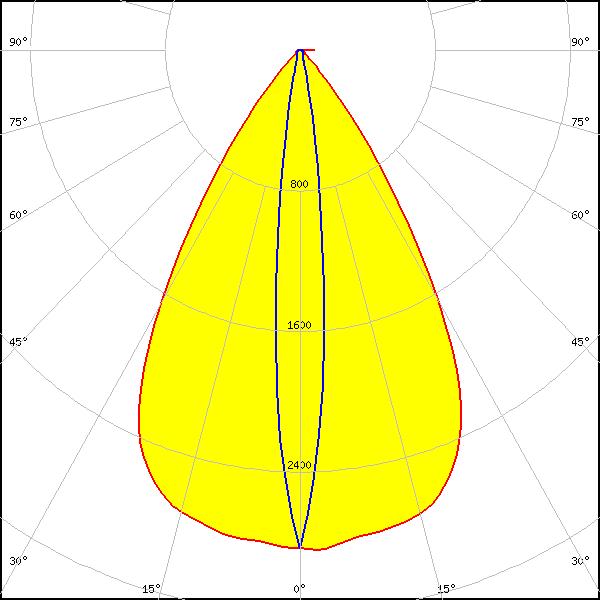

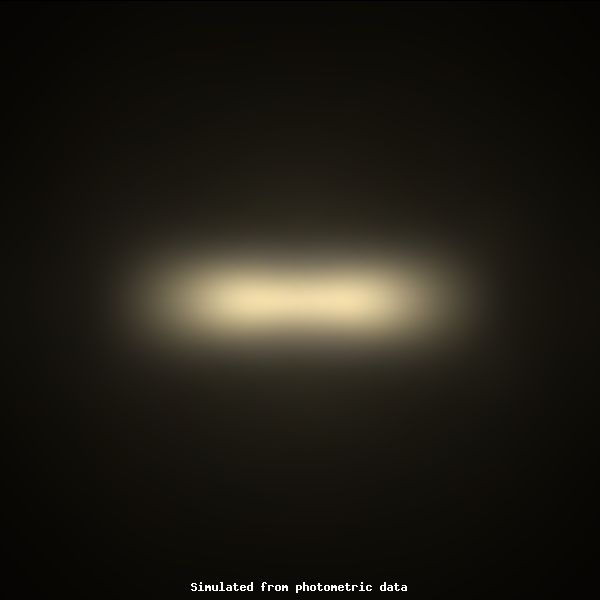

Optical results

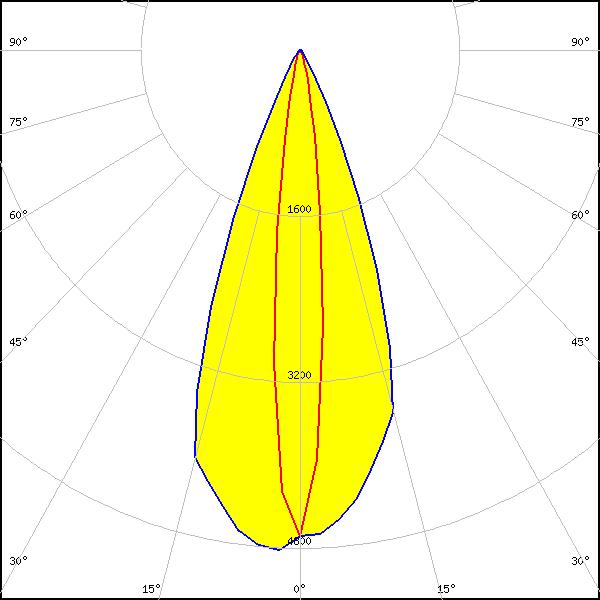

LED:

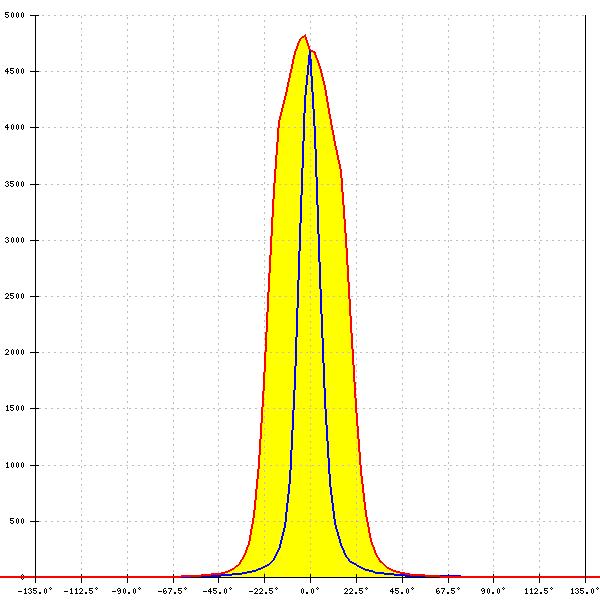

XB-D
FWHM:
41° + 13°
FWTM:
57° + 26°
Peak intensity:
4.800 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

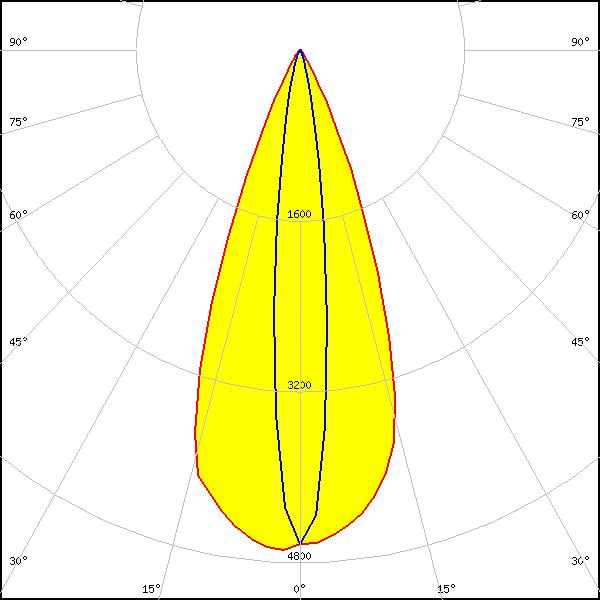

LED:

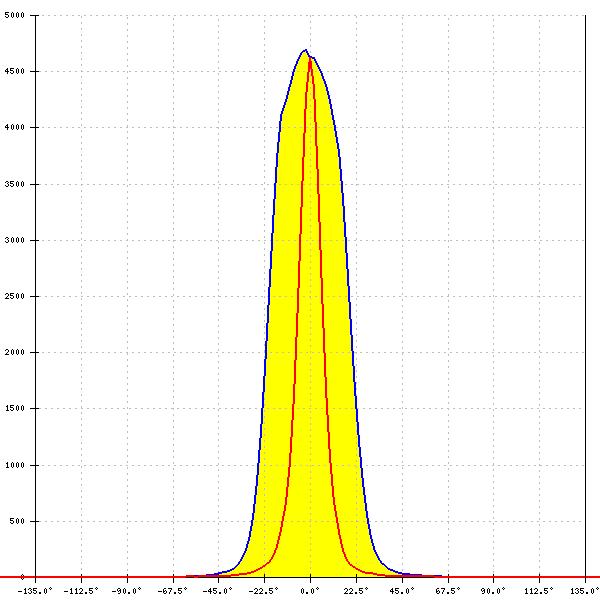

XB-H
FWHM:
41° + 13°
FWTM:
58° + 26°
Peak intensity:
4.600 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-E
FWHM:
40° + 13°
FWTM:
55° + 24°
Peak intensity:
4.800 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

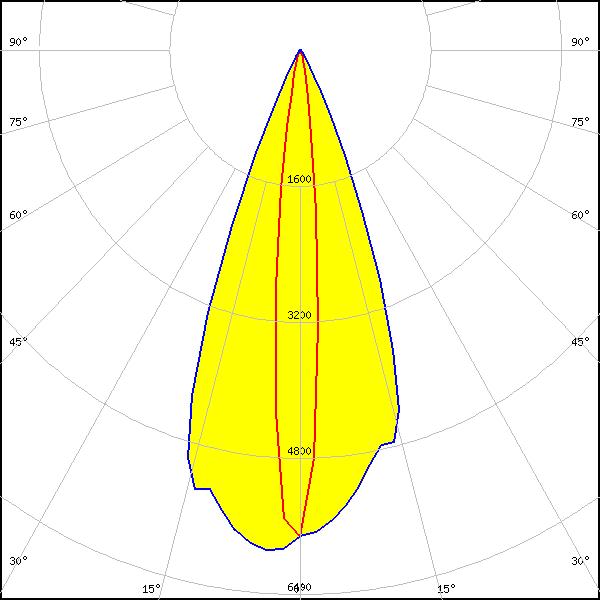

LED:
XP-E2
FWHM:
41° + 11°
FWTM:
55° + 22°
Peak intensity:
5.800 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

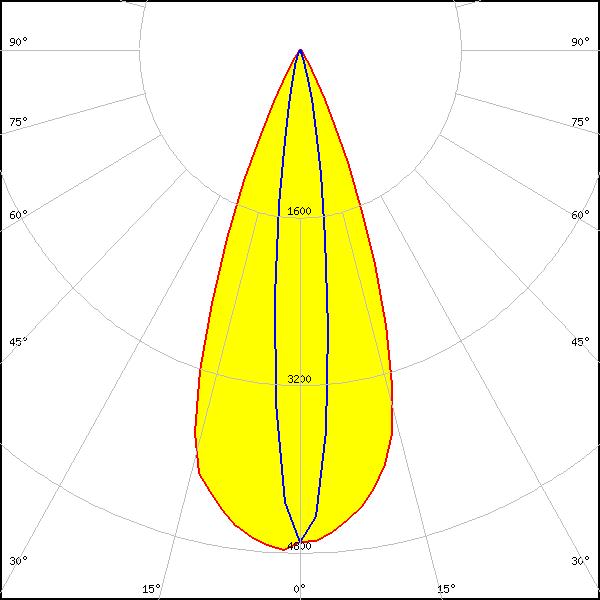

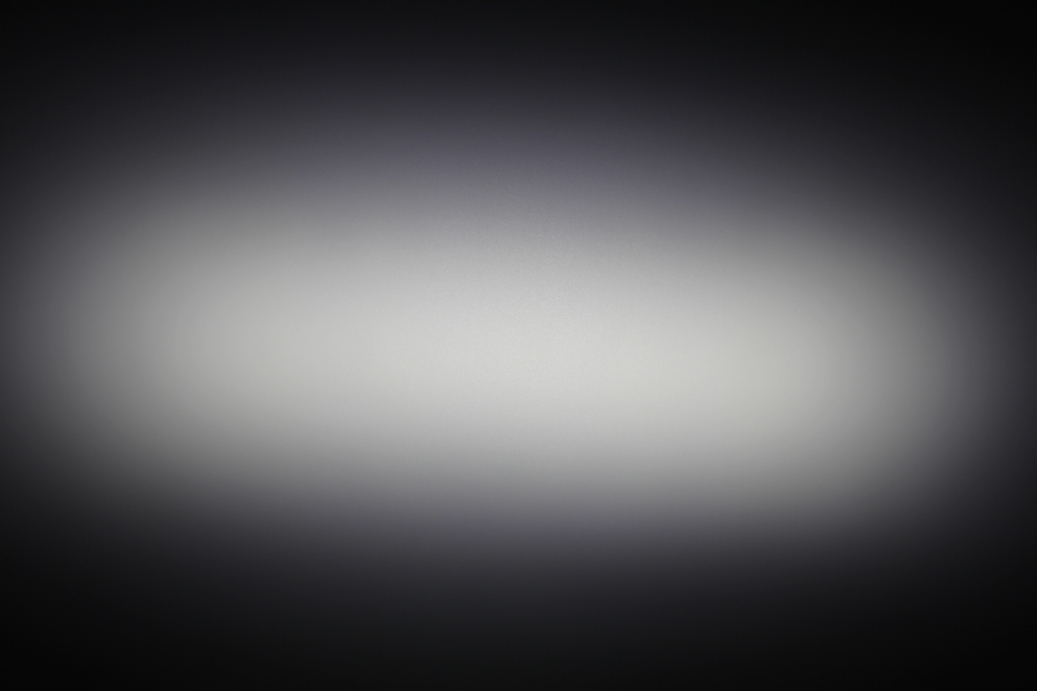

LED:
XP-G2
FWHM:
41° + 14°
FWTM:
58° + 27°
Peak intensity:
4.800 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

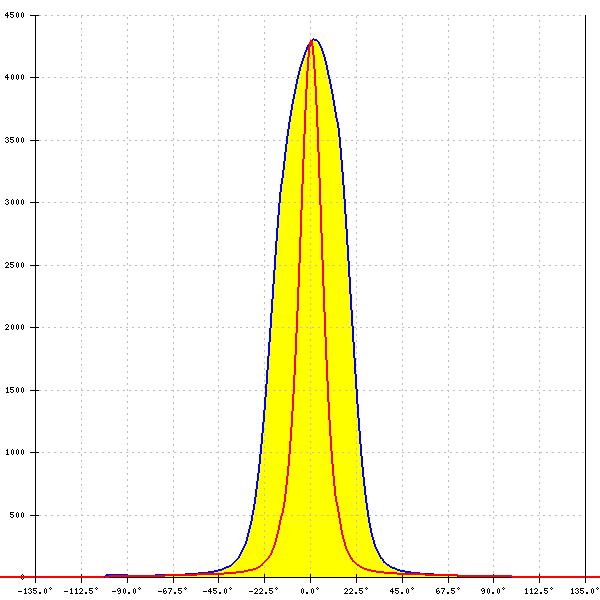

LED:

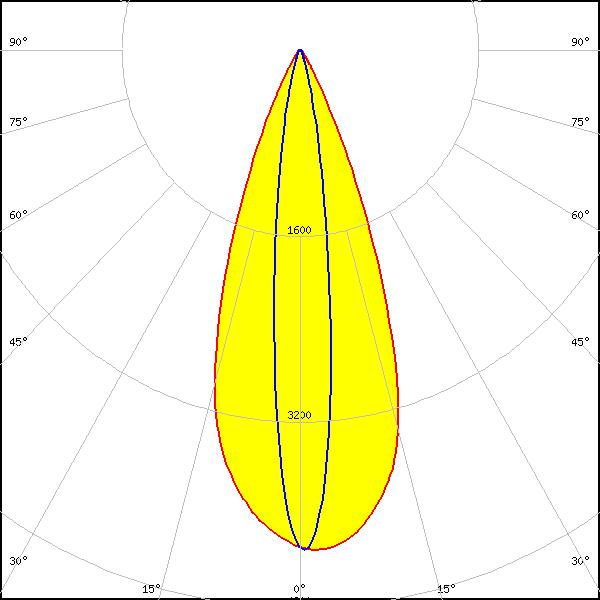

XP-G3
FWHM:
39° + 13°
FWTM:
58° + 29°
Peak intensity:
4.327 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

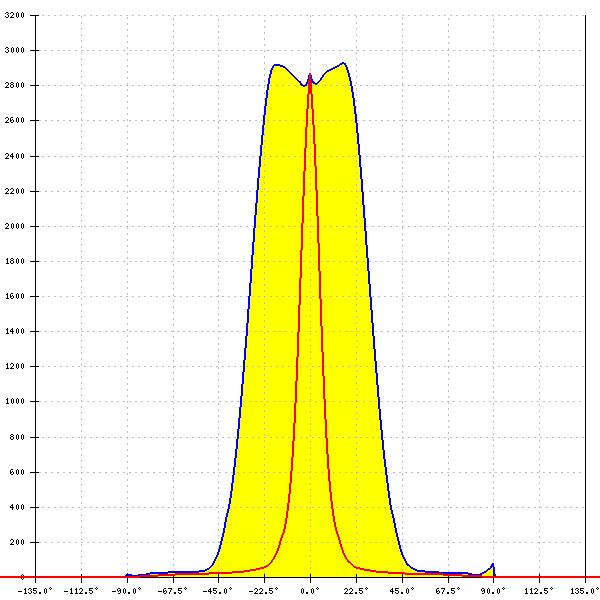

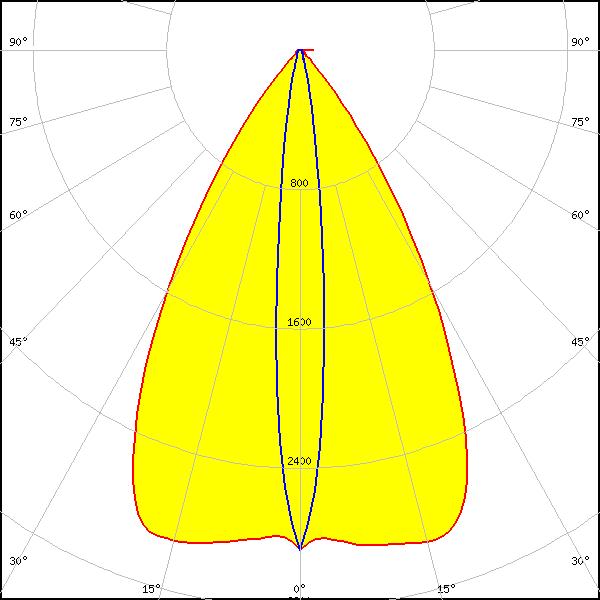

LED:
XP-G4
FWHM:
62° + 12°
FWTM:
84° + 26°
Peak intensity:
2.927 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

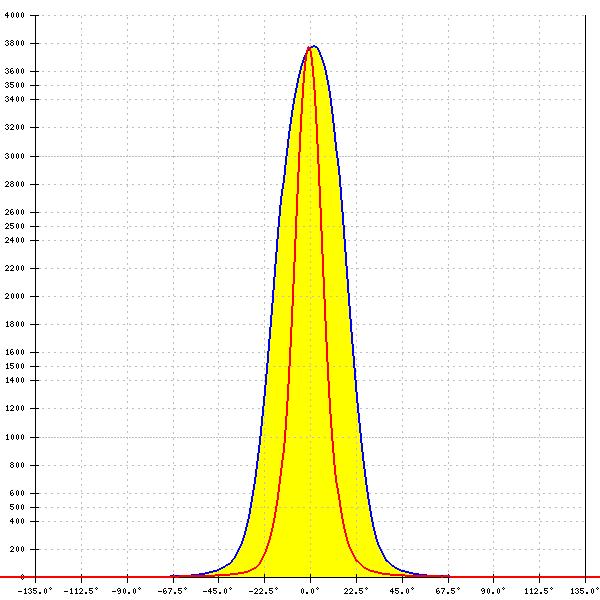

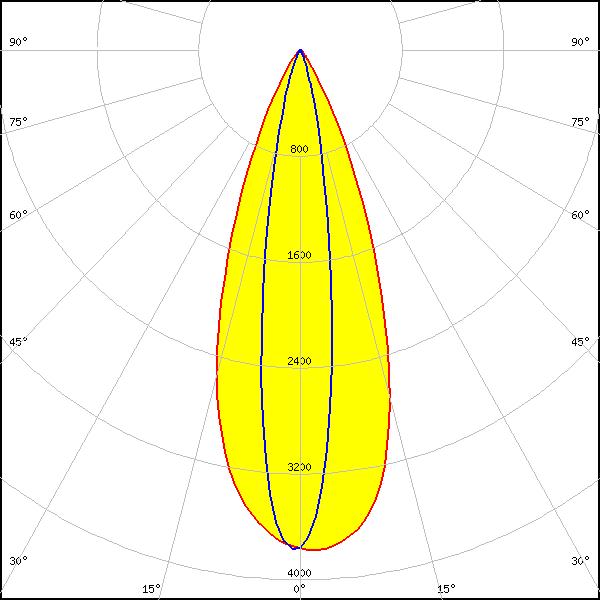

LED:
XP-L HD
FWHM:
38° + 16°
FWTM:
60° + 34°
Peak intensity:
3.760 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

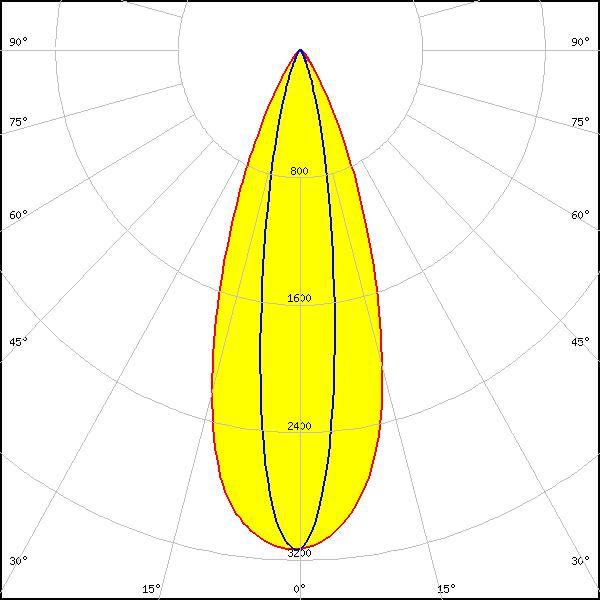

XP-L2
FWHM:
38° + 17°
FWTM:
64° + 38°
Peak intensity:
3.100 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:

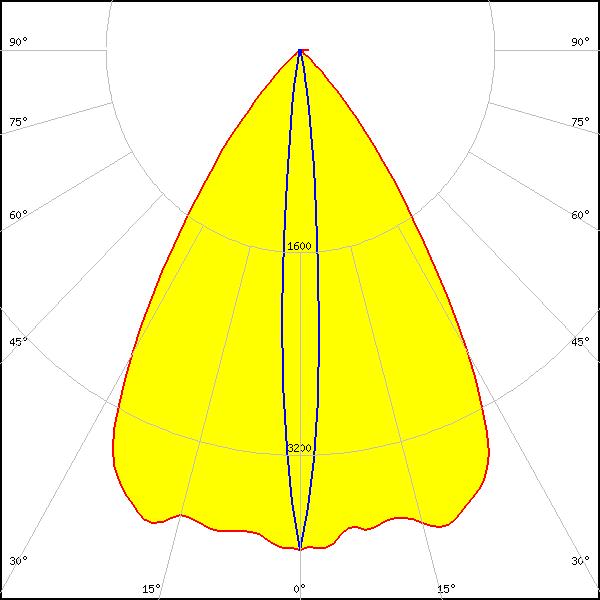

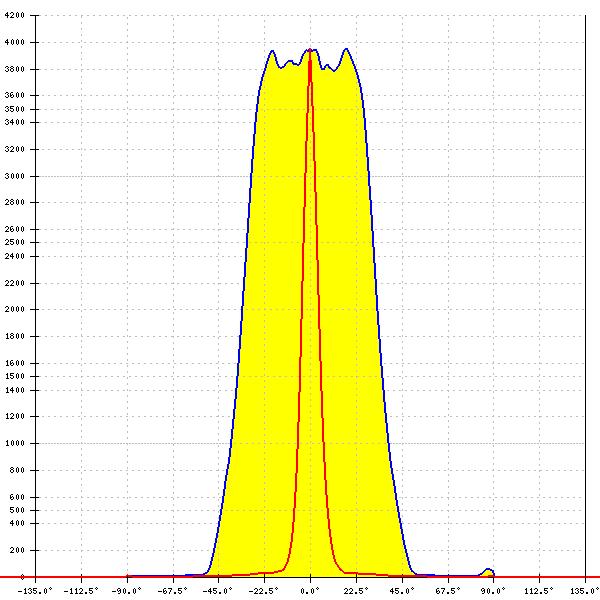

XQ-E HD
FWHM:
66° + 9°
FWTM:
89° + 18°
Peak intensity:
3.963 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

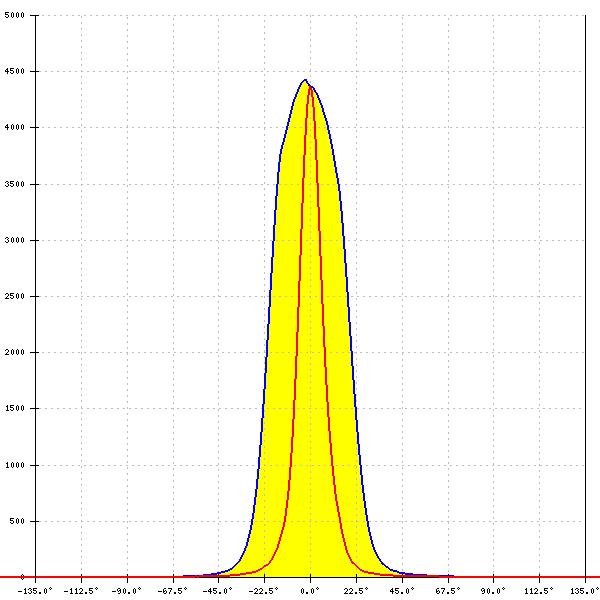

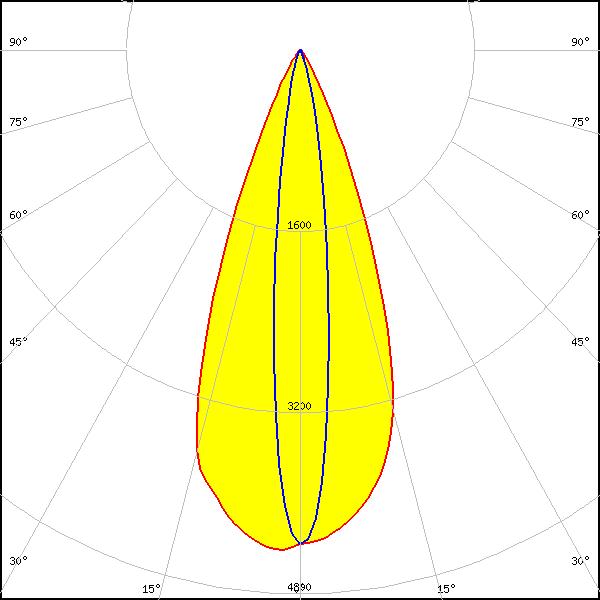

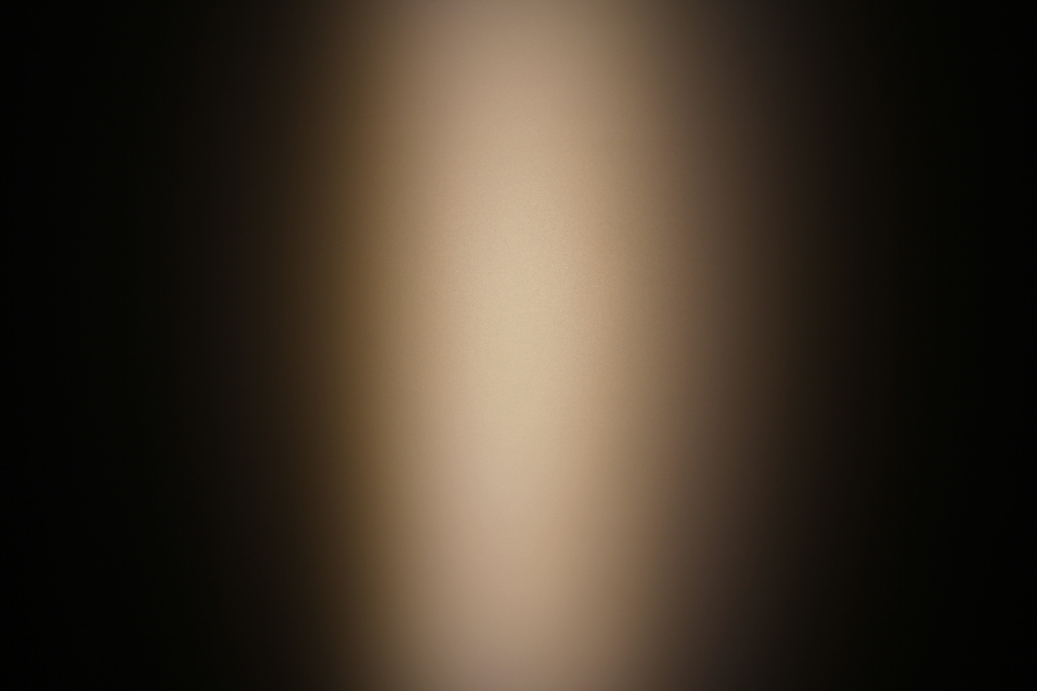

LED:
XT-E
FWHM:
40° + 14°
FWTM:
59° + 29°
Peak intensity:
4.400 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

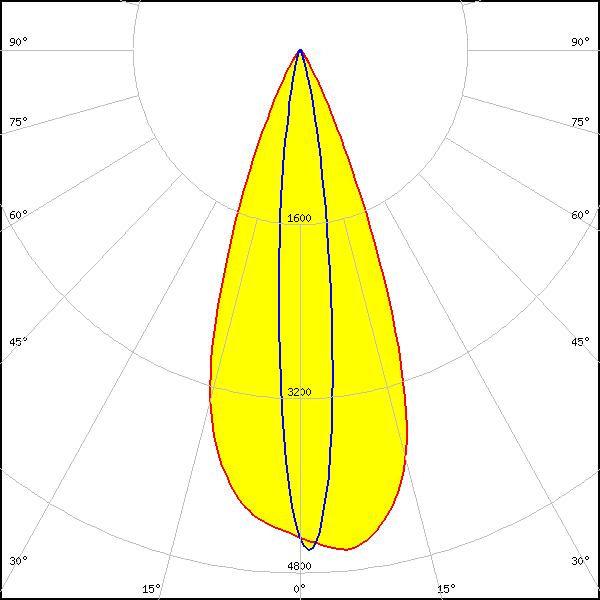

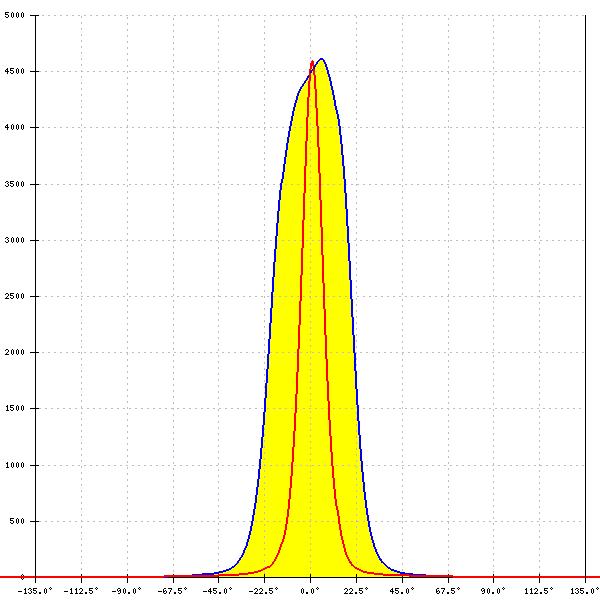

LED:
LUXEON 3030 2D (Round LES)
FWHM:
40° + 13°
FWTM:
58° + 26°
Peak intensity:
4.700 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

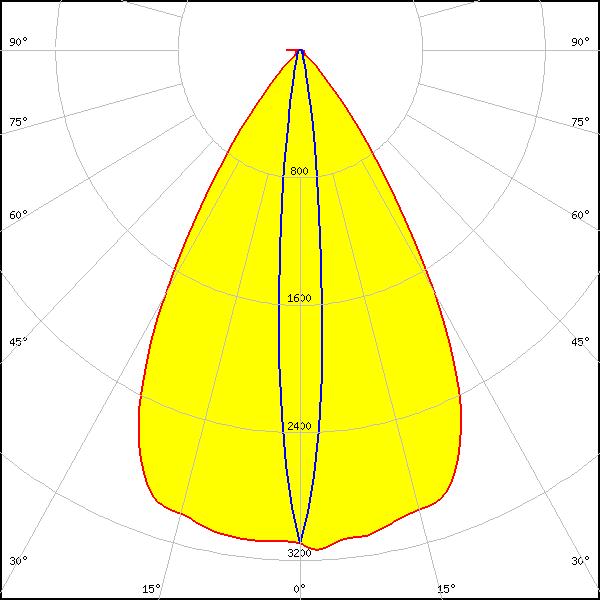

LED:

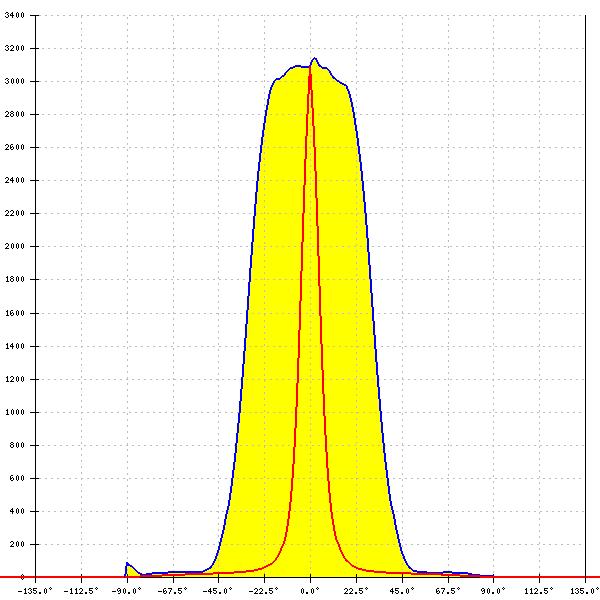

LUXEON 3535L
FWHM:
62° + 10°
FWTM:
84° + 23°
Peak intensity:
3.150 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

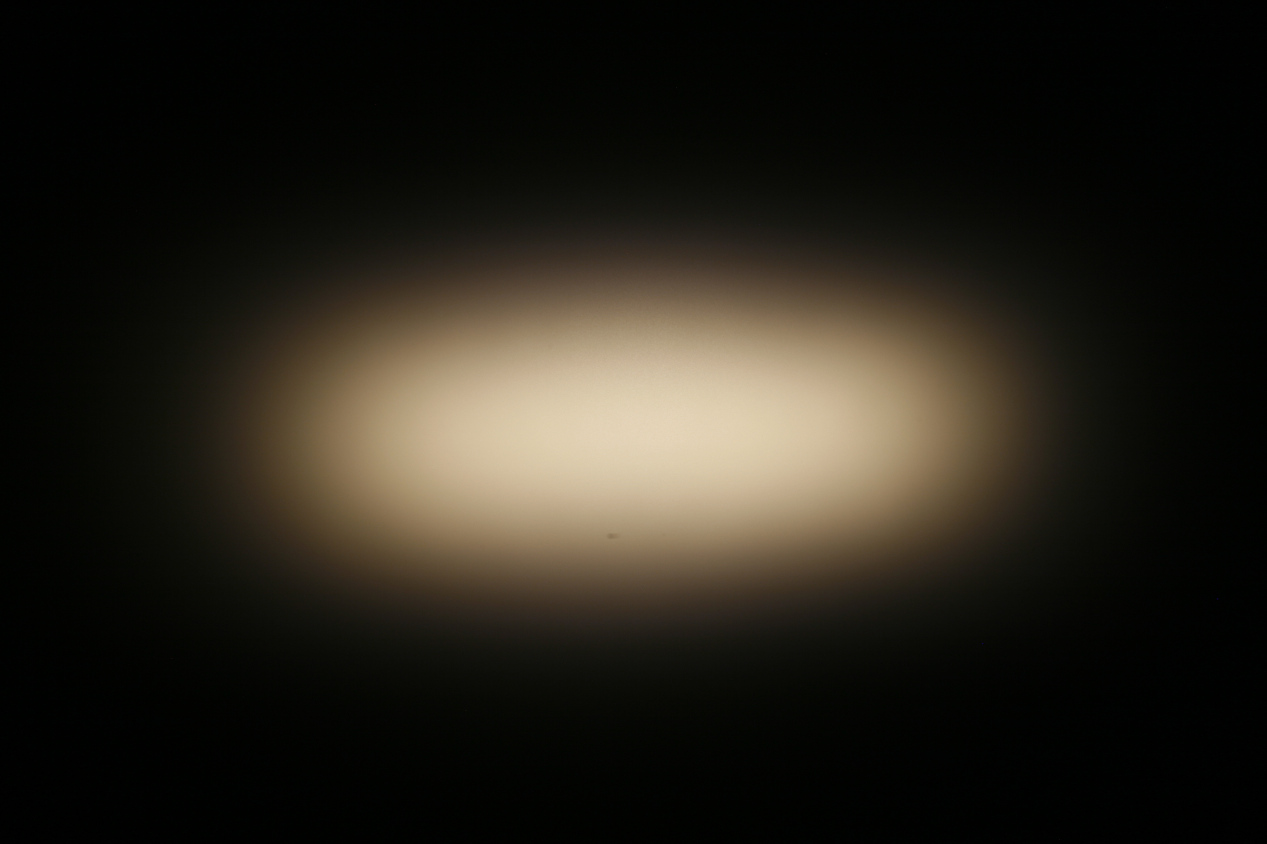

LED:

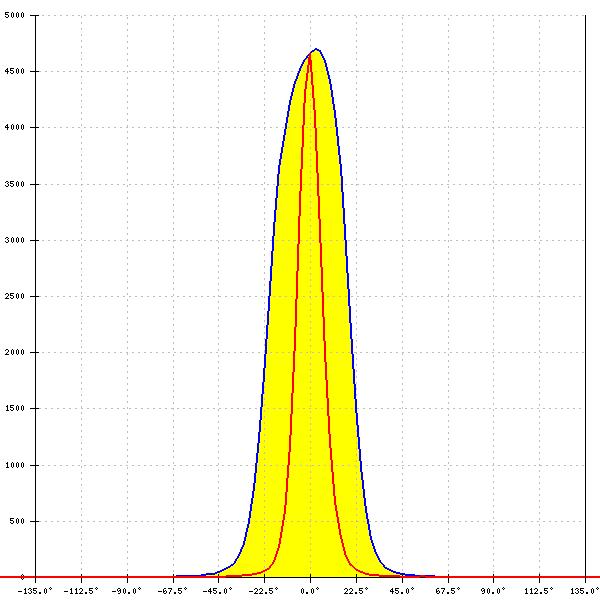

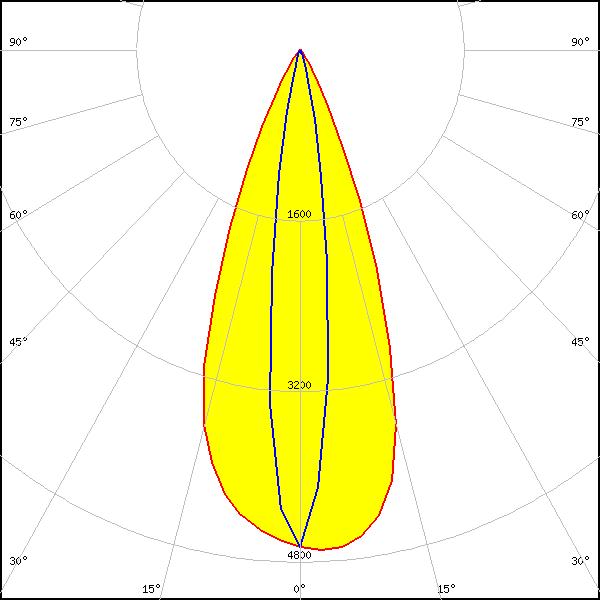

LUXEON T
FWHM:
40° + 15°
FWTM:
60° + 28°
Peak intensity:
4.700 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

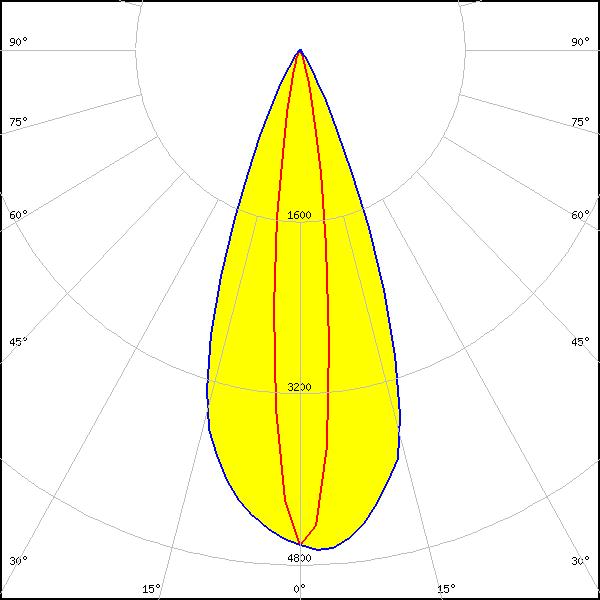

LED:

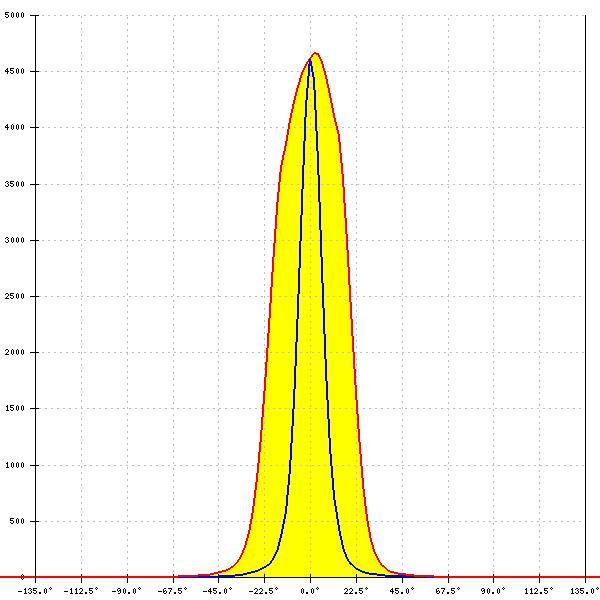

LUXEON TX
FWHM:
41° + 14°
FWTM:
59° + 27°
Peak intensity:
4.600 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

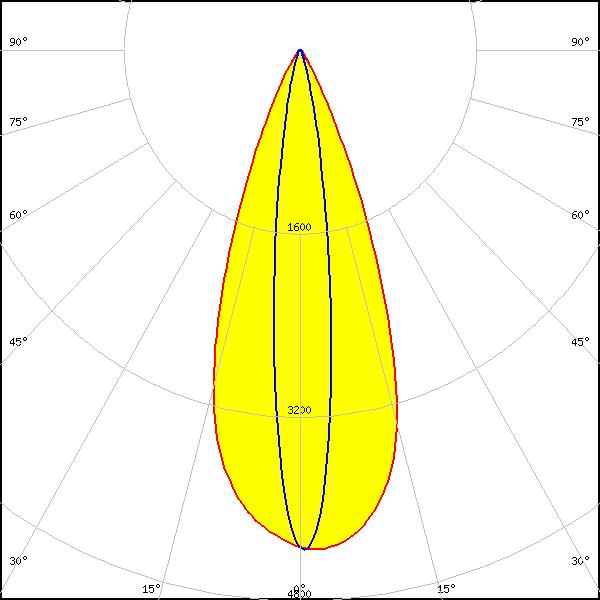

LED:

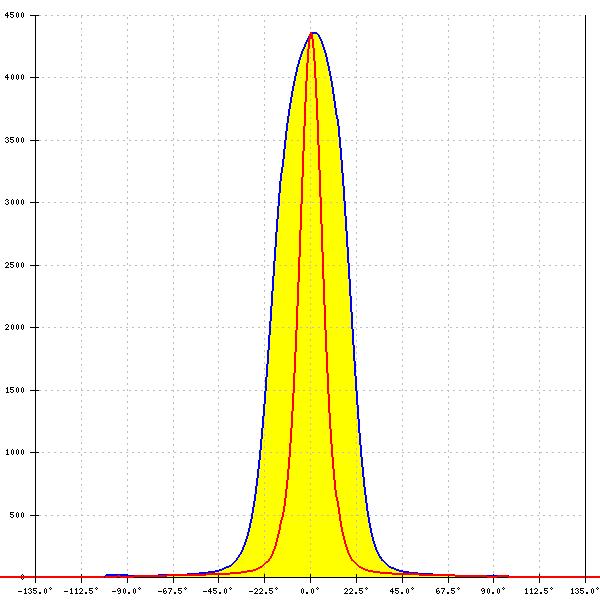

LUXEON V2
FWHM:
39° + 13°
FWTM:
58° + 29°
Peak intensity:
4.380 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

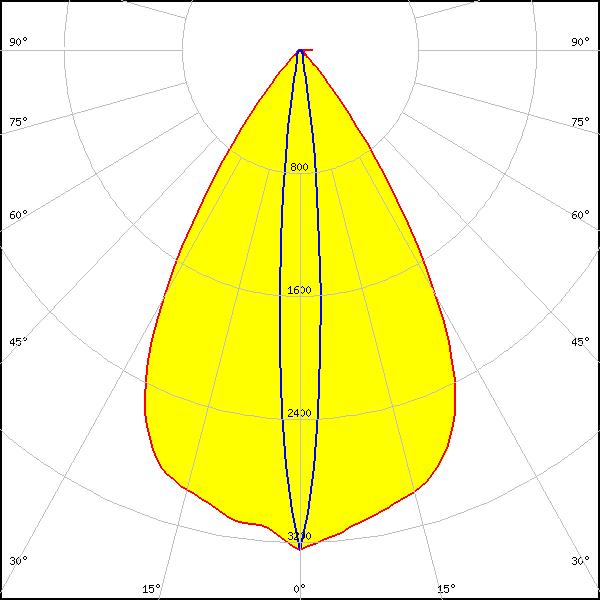

NCSxE17A
FWHM:
62° + 10°
FWTM:
82° + 20°
Peak intensity:
3.252 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

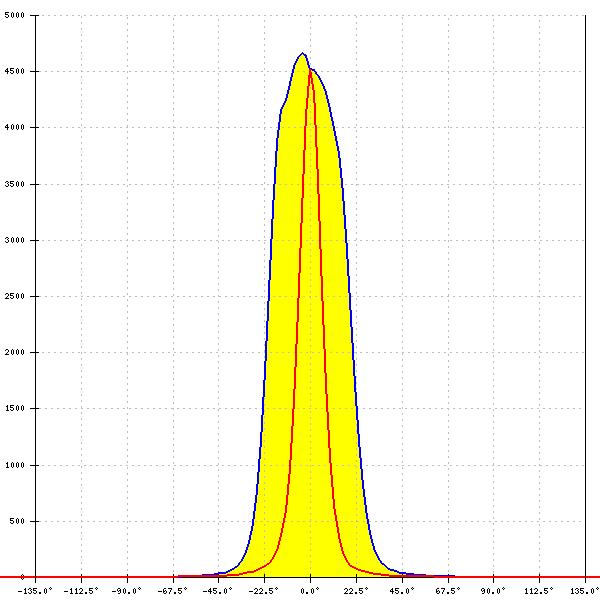

LED:

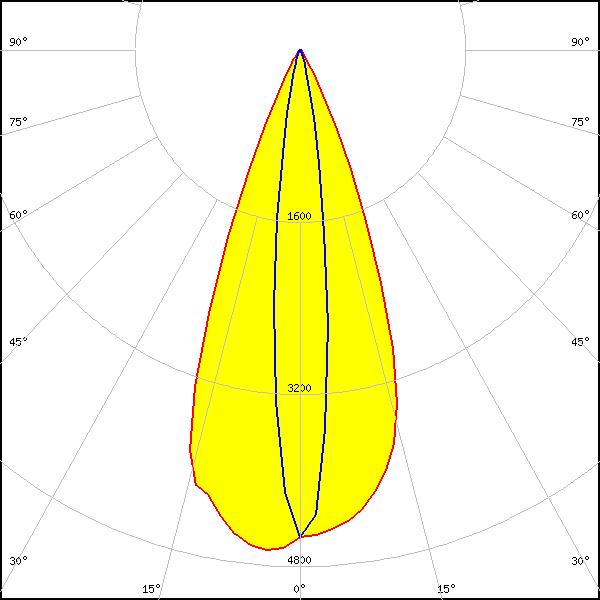

NCSxx19A
FWHM:
41° + 13°
FWTM:
58° + 27°
Peak intensity:
4.700 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

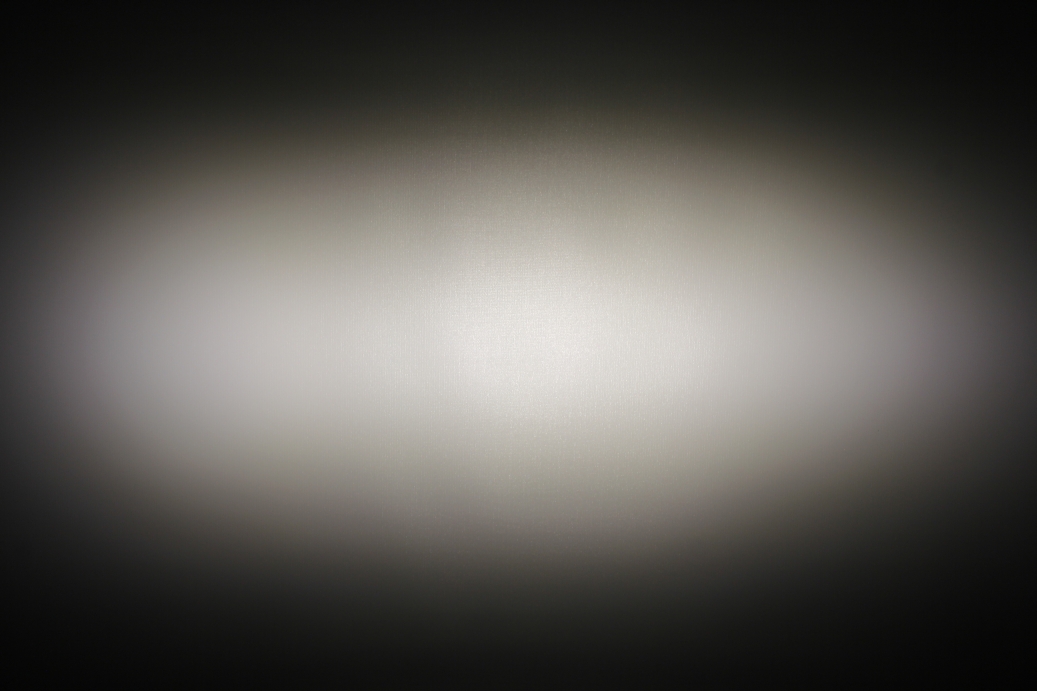

LED:

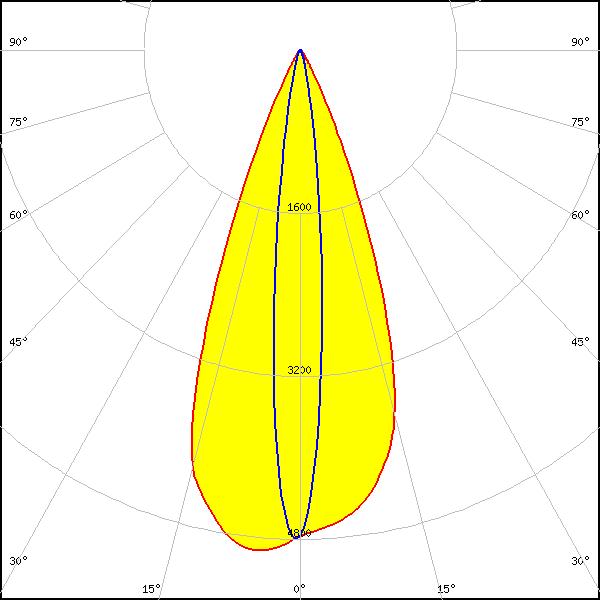

NCSxx19B
FWHM:
40° + 12°
FWTM:
56° + 24°
Peak intensity:
4.900 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

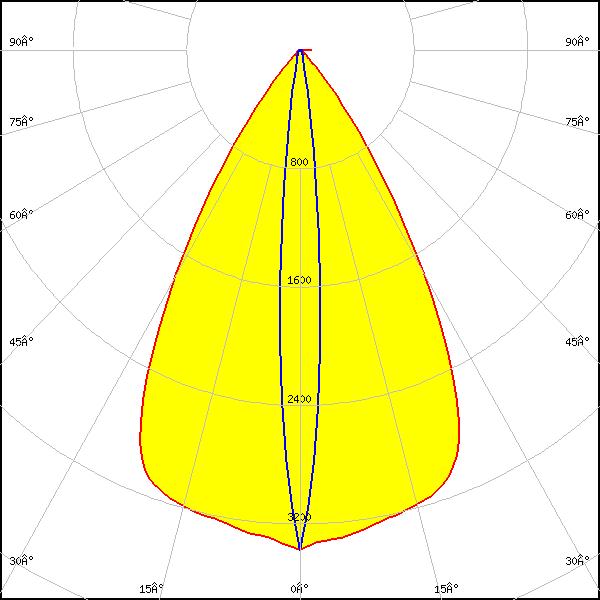

LED:
NVSW219C-V2
FWHM:
60° + 10°
FWTM:
82° + 20°
Peak intensity:
3.379 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

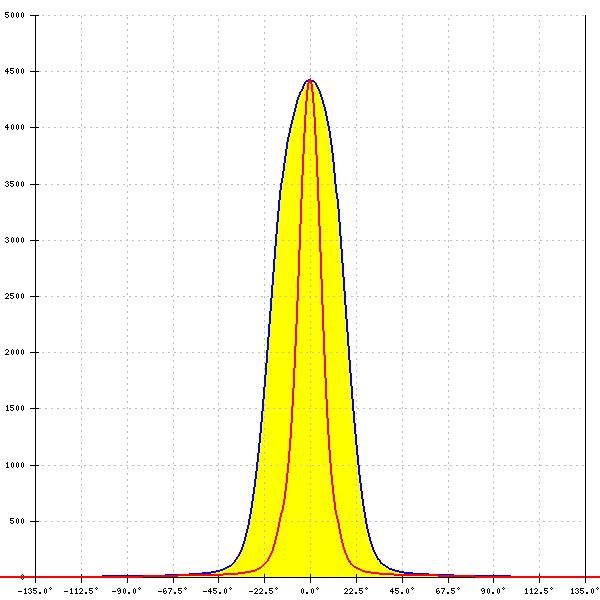

LED:

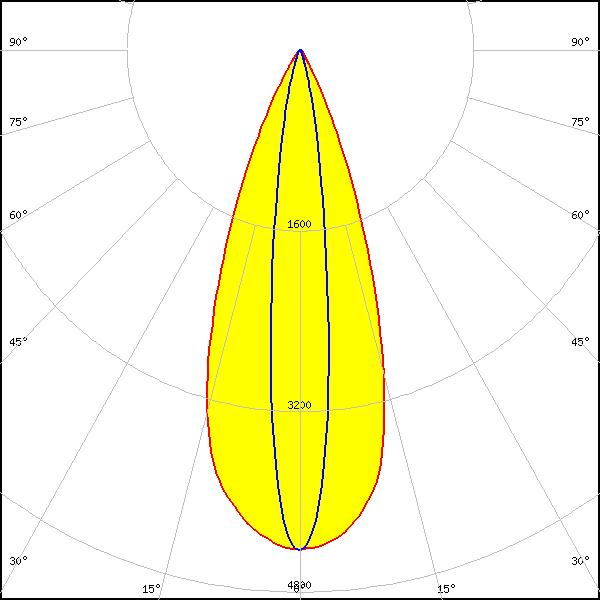

NVSW219D
FWHM:
38° + 14°
FWTM:
59° + 29°
Peak intensity:
4.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

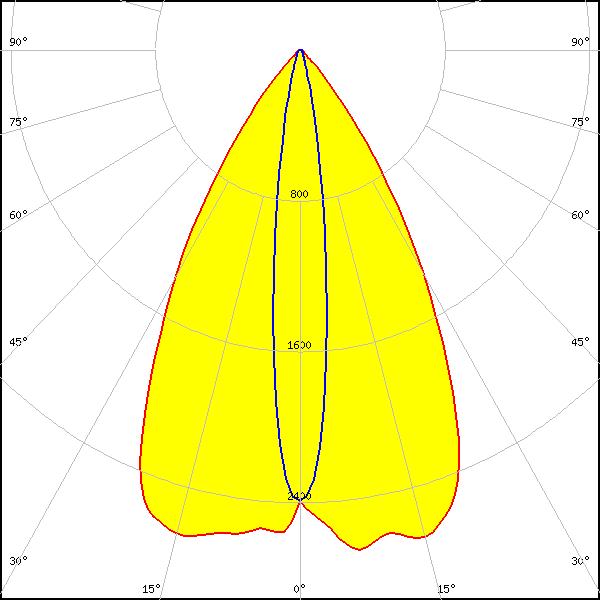

LED:

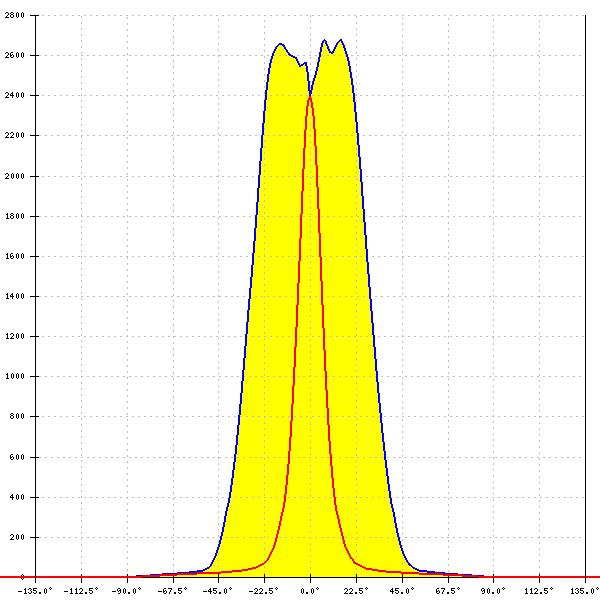

NVSW219F
FWHM:
60° + 14°
FWTM:
84° + 30°
Peak intensity:
2.674 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

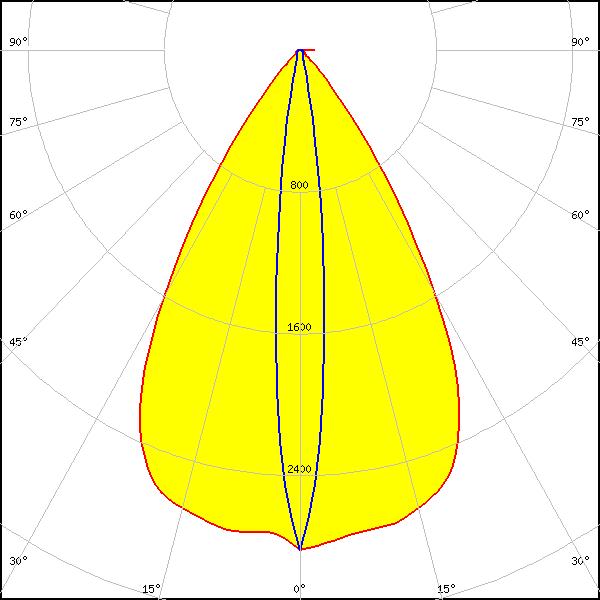

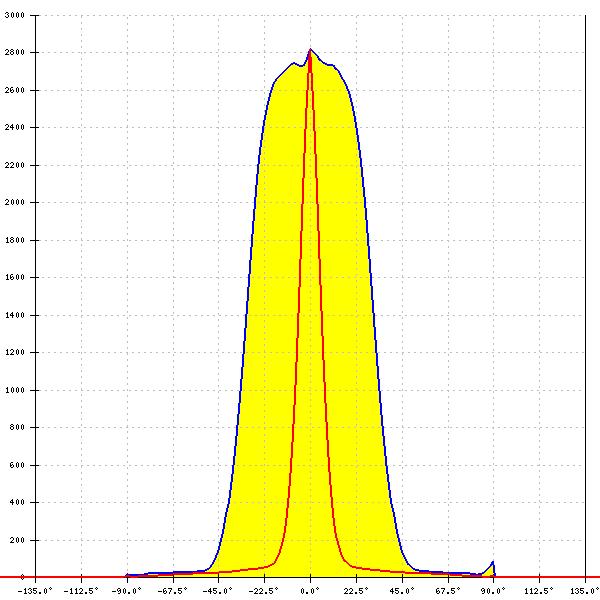

LED:
NVSxE21A
FWHM:
62° + 12°
FWTM:
84° + 24°
Peak intensity:
2.821 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

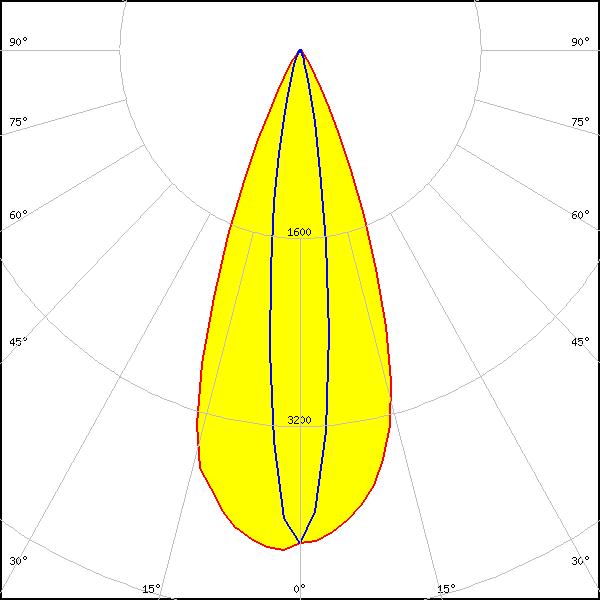

LED:

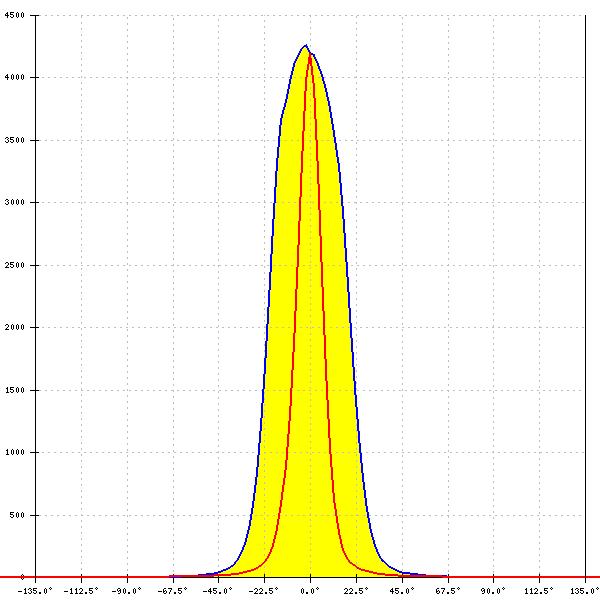

NVSxx19A
FWHM:
40° + 15°
FWTM:
60° + 30°
Peak intensity:
4.300 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

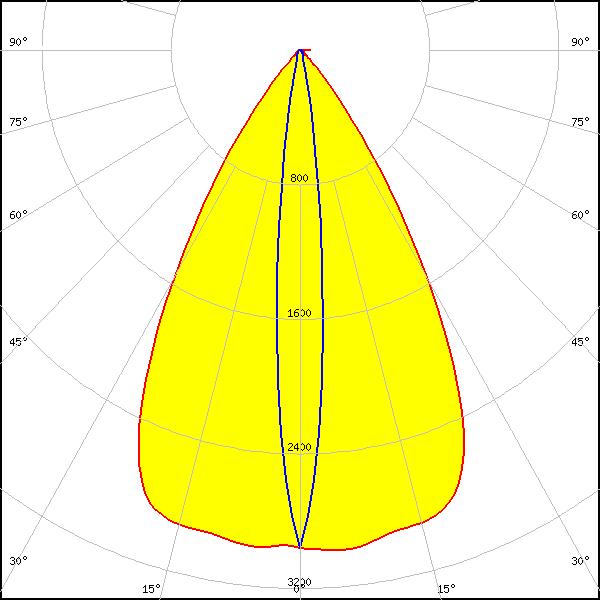

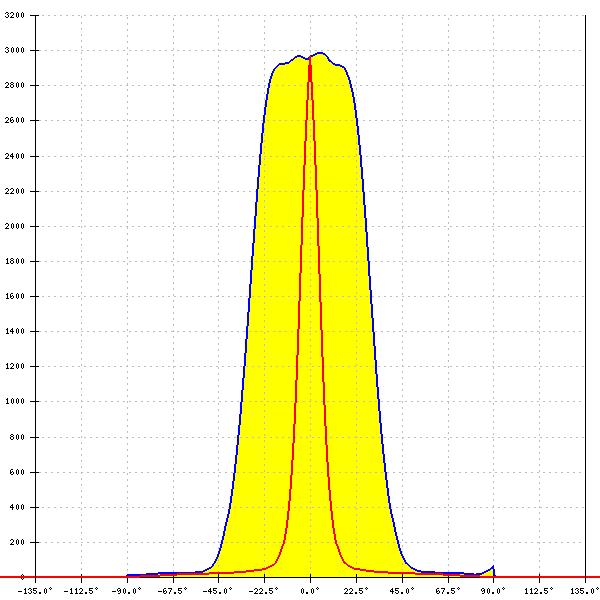

OSCONIQ C 2424
FWHM:
61° + 12°
FWTM:
82° + 24°
Peak intensity:
2.984 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

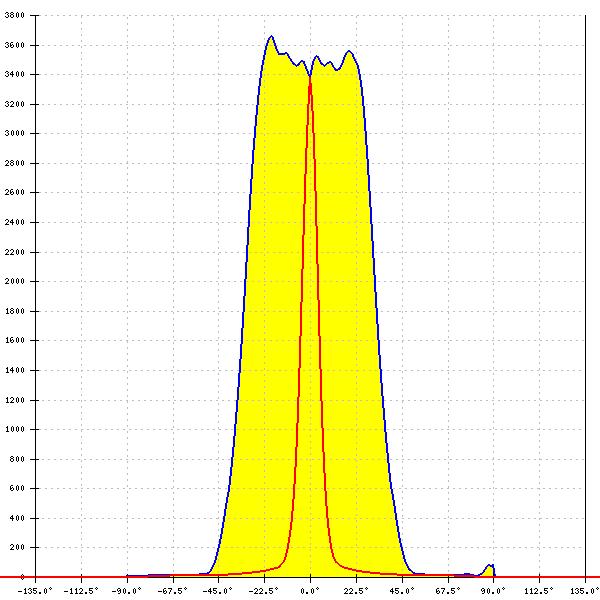

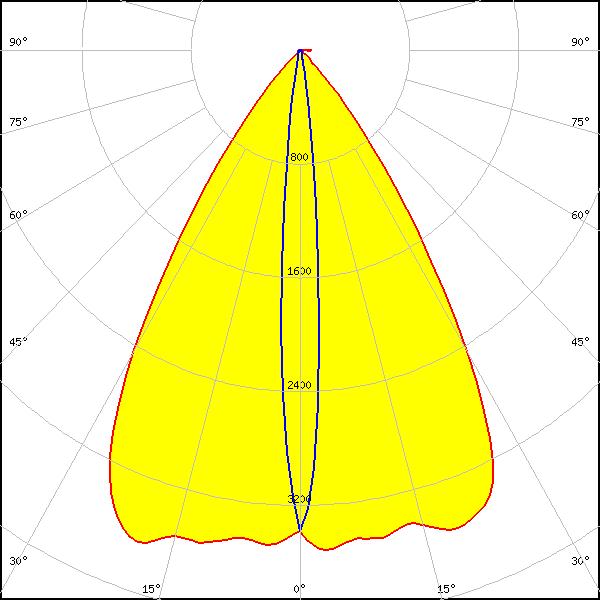

LED:
OSCONIQ P 3030
FWHM:
66° + 10°
FWTM:
85° + 19°
Peak intensity:
3.658 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Black
FWHM:
62° + 10°
FWTM:
83° + 20°
Peak intensity:
3.210 cd/lm
LEDs/each optic:
1
Light colour/type:
White

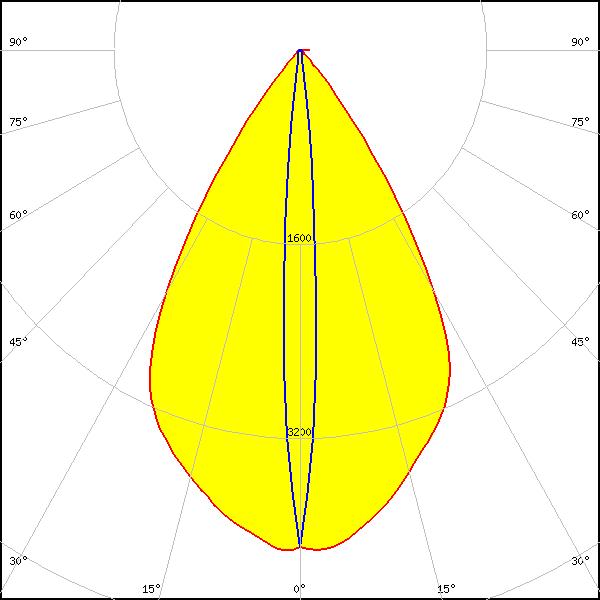

LED:

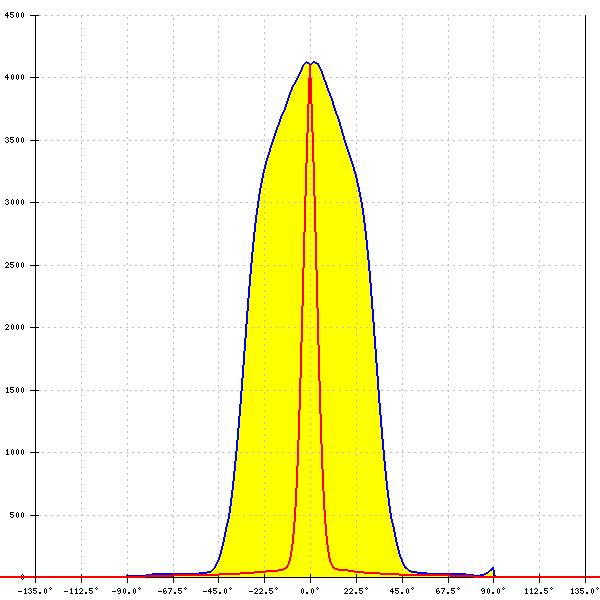

OSLON Black Flat (LUW HWQP)
FWHM:
62° + 8°
FWTM:
82° + 16°
Peak intensity:
4.124 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

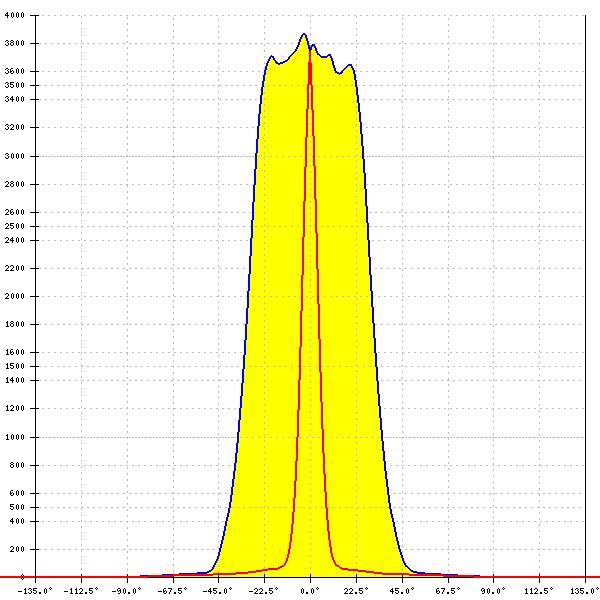

LED:

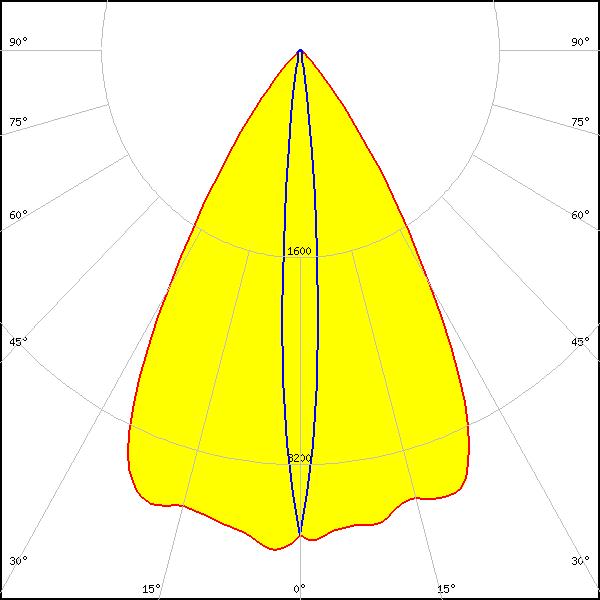

OSLON Signal
FWHM:
62° + 8°
FWTM:
82° + 18°
Peak intensity:
3.868 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
Red
LED:

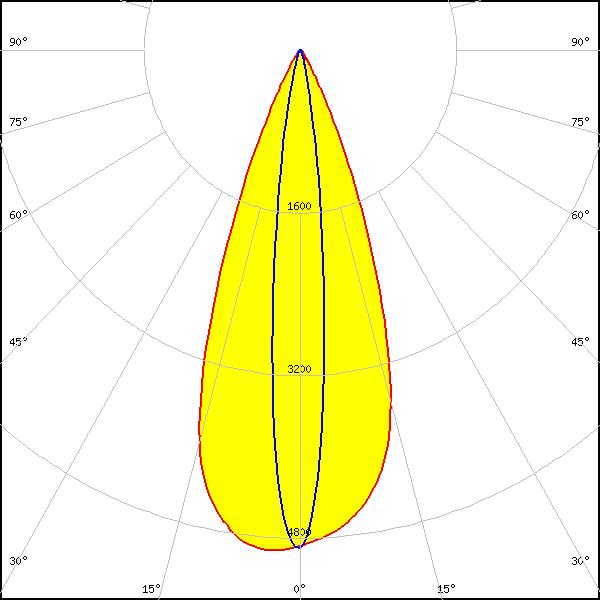

OSLON Square CSSRM2/CSSRM3
FWHM:
39° + 12°
FWTM:
57° + 25°
Peak intensity:
4.900 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

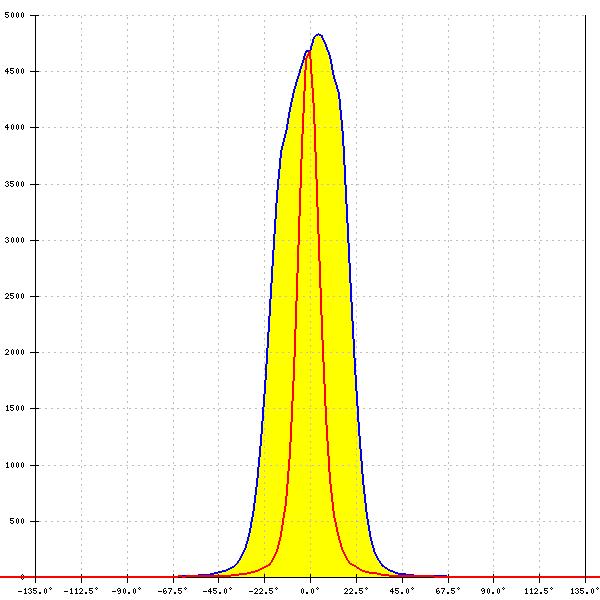

LED:

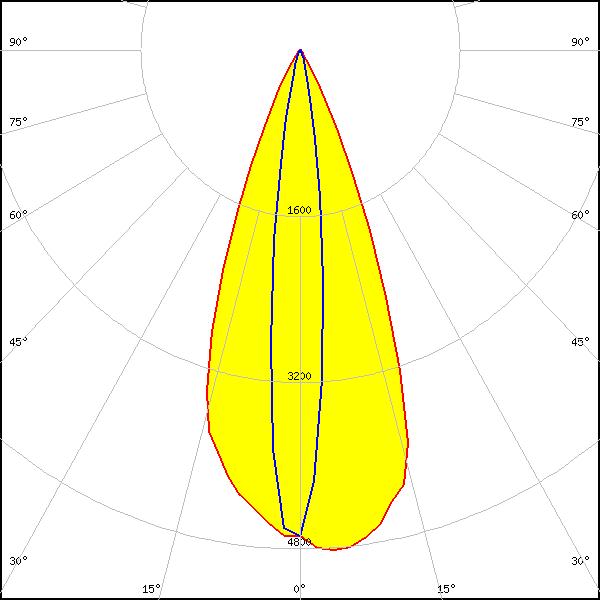

OSLON Square EC
FWHM:
40° + 13°
FWTM:
58° + 27°
Peak intensity:
4.800 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

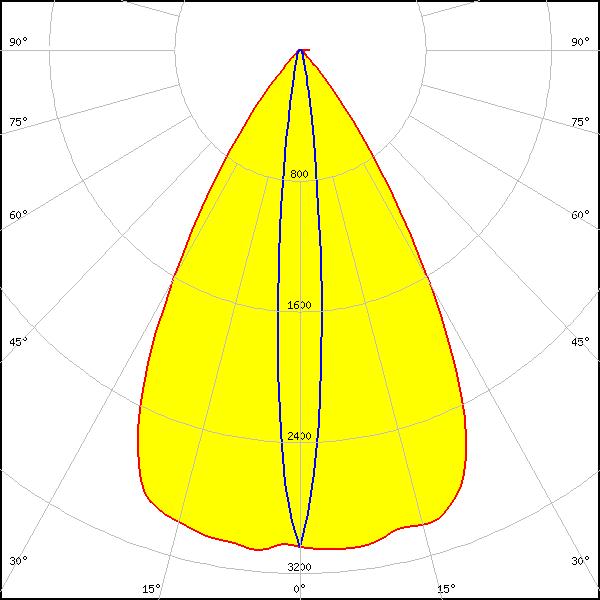

LED:
OSLON Square Flat
FWHM:
61° + 10°
FWTM:
82° + 23°
Peak intensity:
3.100 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

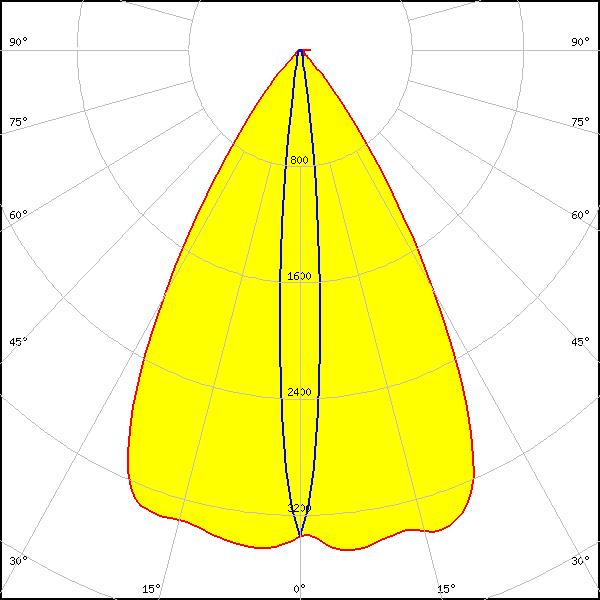

LED:

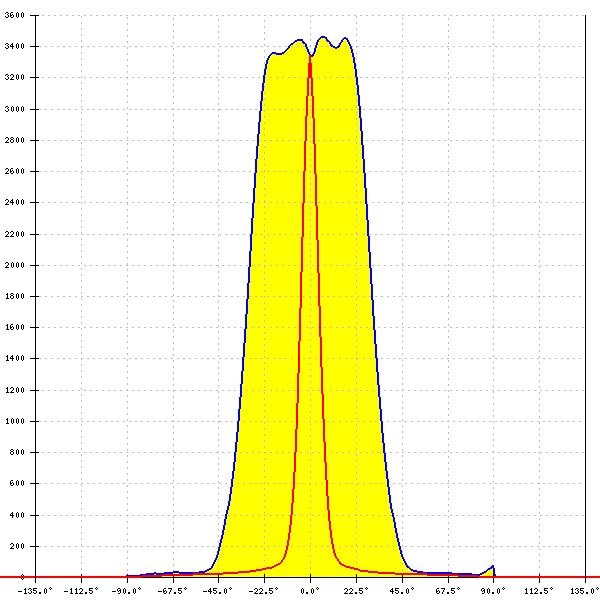

OSLON SSL 150
FWHM:
62° + 10°
FWTM:
83° + 20°
Peak intensity:
3.500 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

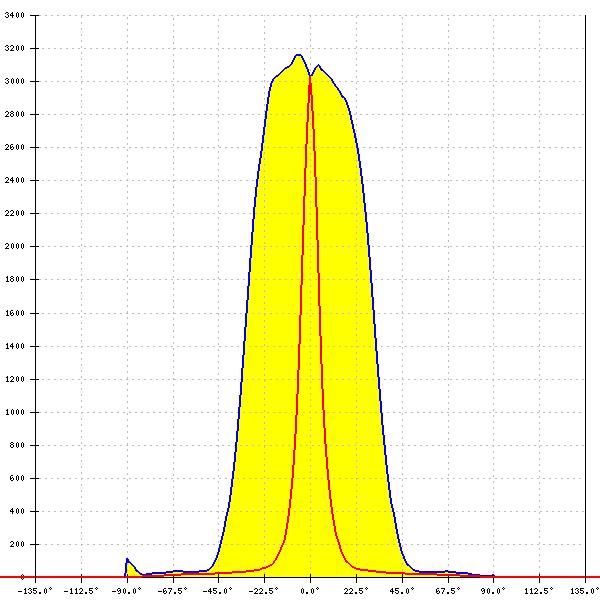

LED:

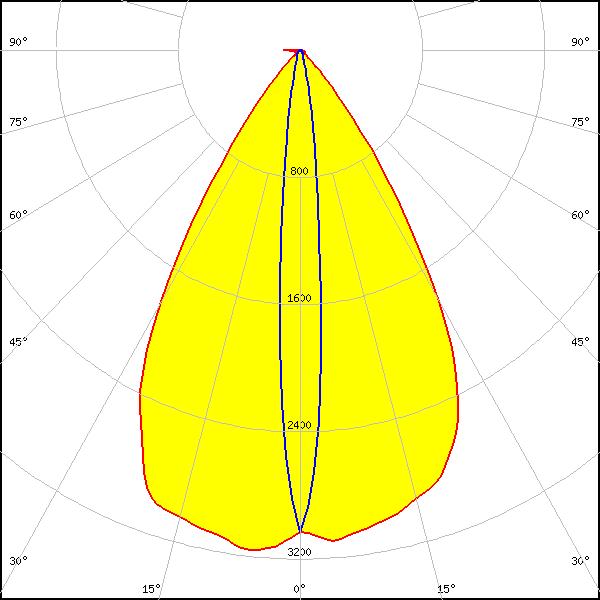

OSLON SSL 80
FWHM:
62° + 10°
FWTM:
84° + 24°
Peak intensity:
3.165 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SFH 4770S
FWHM:
63° + 11°
FWTM:
83° + 27°
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

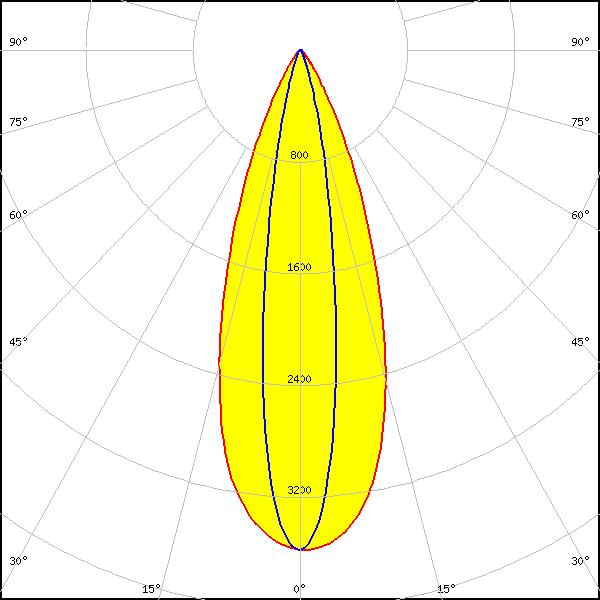

LH351D
FWHM:
37° + 17°
FWTM:
63° + 34°
Peak intensity:
3.600 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

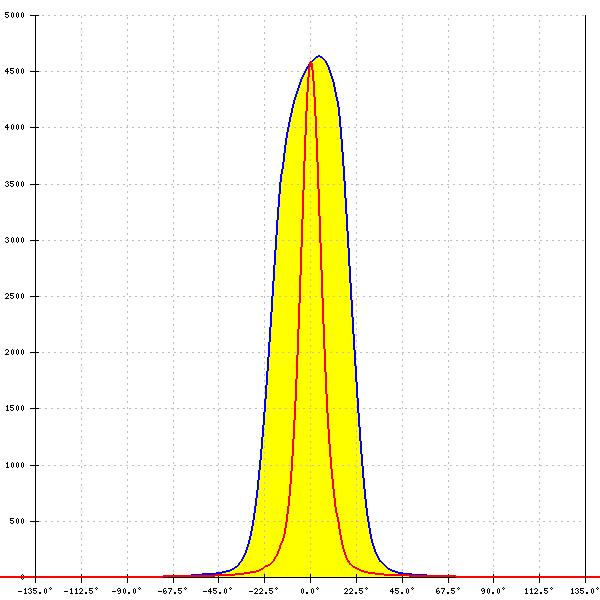

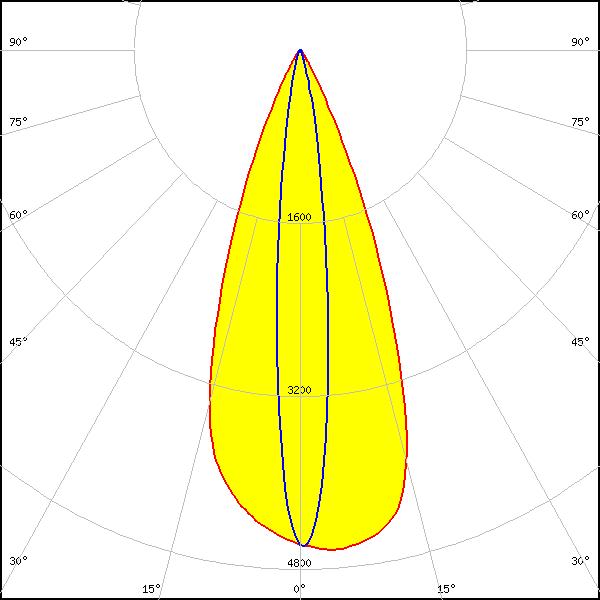

LED:
Z5M1/Z5M2
FWHM:
40° + 12°
FWTM:
57° + 26°
Peak intensity:
4.640 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

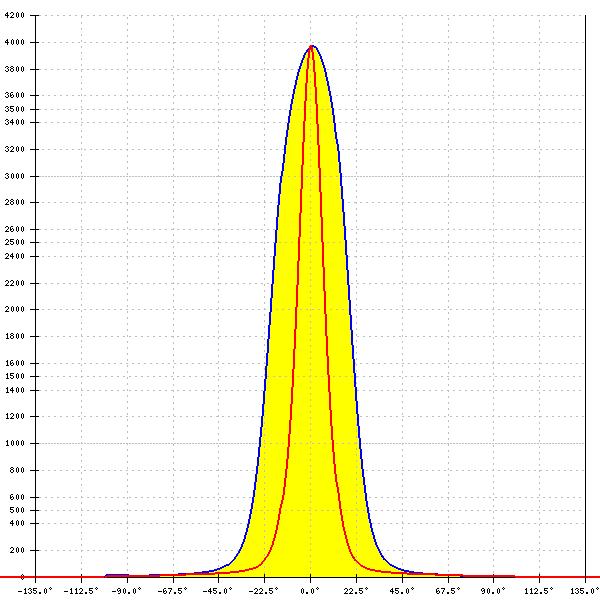

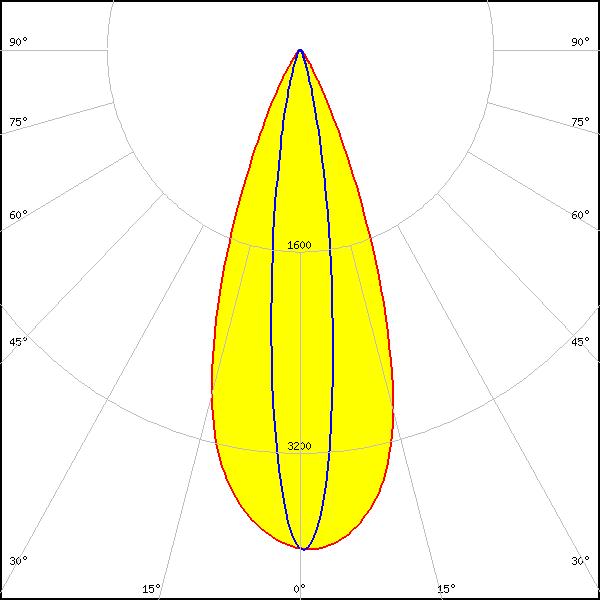

Z5M3
FWHM:
39° + 15°
FWTM:
60° + 32°
Peak intensity:
4.000 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

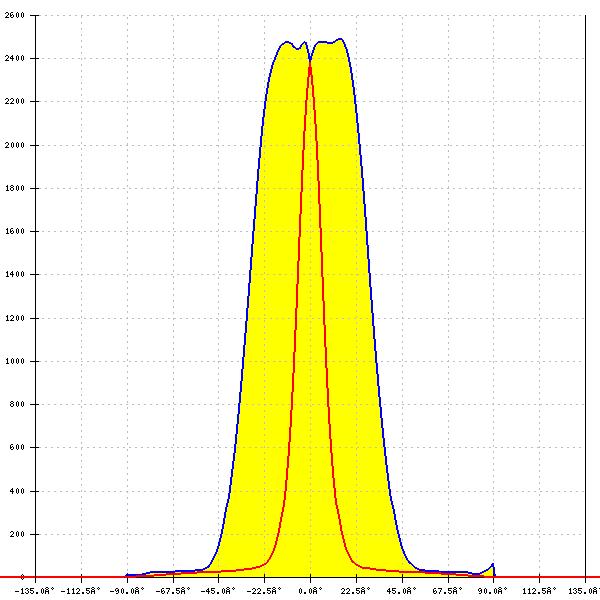

LED:

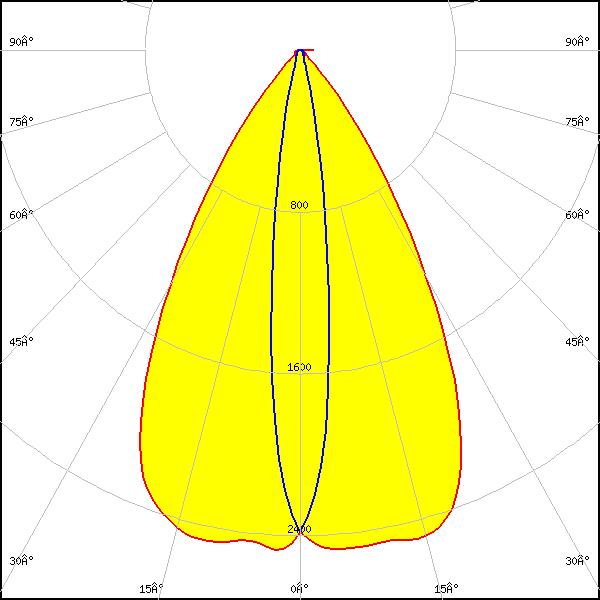

Z5M4
FWHM:
62° + 14°
FWTM:
84° + 30°
Peak intensity:
2.490 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

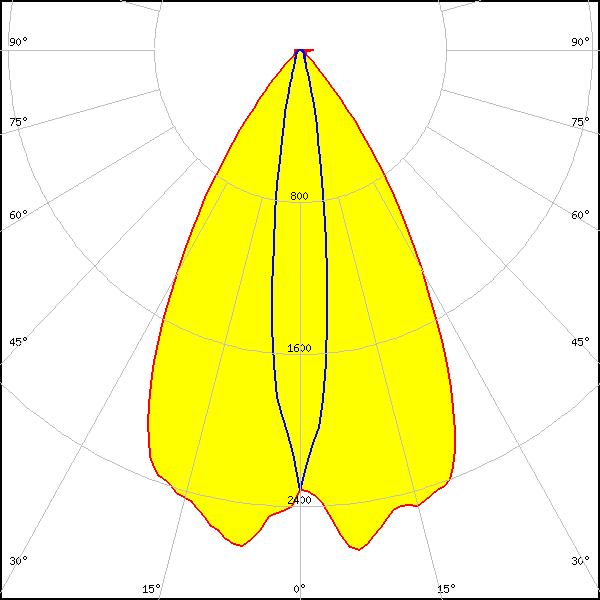

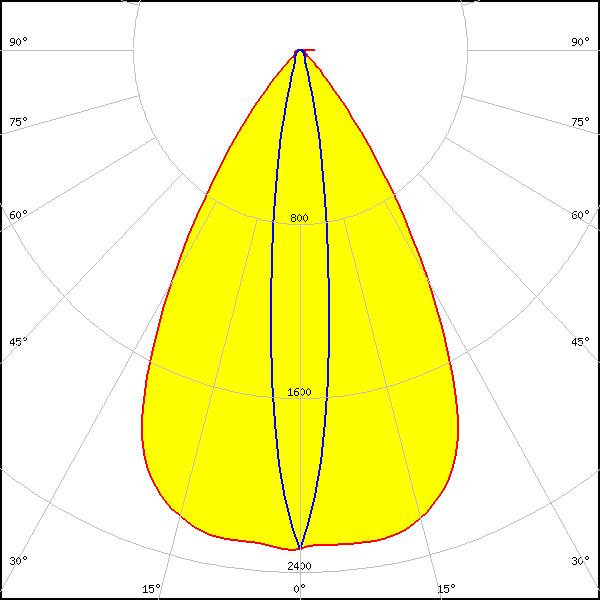

LED:

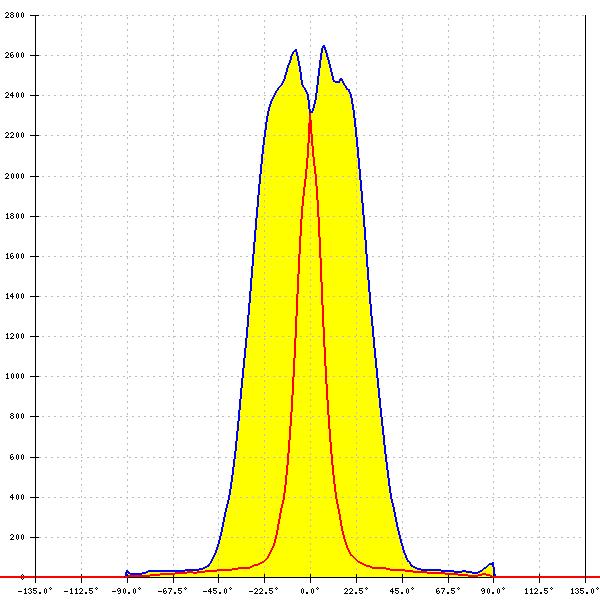

Z8Y22P
FWHM:
60° + 12°
FWTM:
84° + 30°
Peak intensity:
2.650 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
