    CA13627_G2-LAURA-M-P

    Print

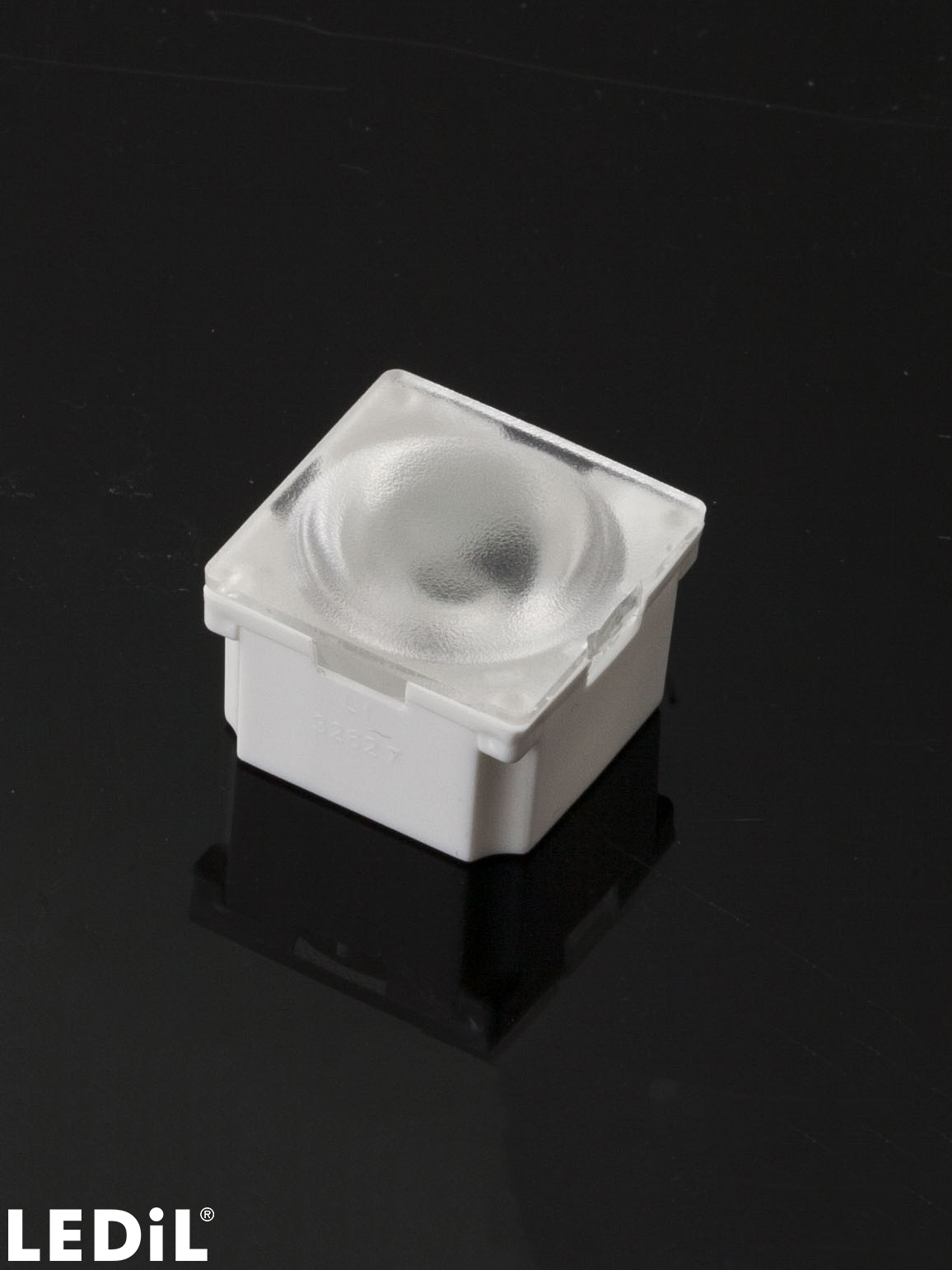

    ~30° medium beam. Assembly with thinner white holder, installation tape and location pins.

    Specification
    • Dimensions:
      22 x  22 mm
    • Height:
      13.10 mm
    • Fastening:
      tape, pin
    • Colour:
      white
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Box weight:
      6.2 kg
    • MPQ:
      180 pcs
    • MOQ:
      360 pcs
    • MOQ size:
      480 x 280 x 50 mm
    • MOQ weight:
      2.0 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CA13627_G2-LAURA-M-P

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    PRODUCT NEWS - SECOND GENERATION OF ROSE, LAURA AND LEILA OPTICS

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application area

    Architectural Outdoor Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Retail Lighting

    Optical results

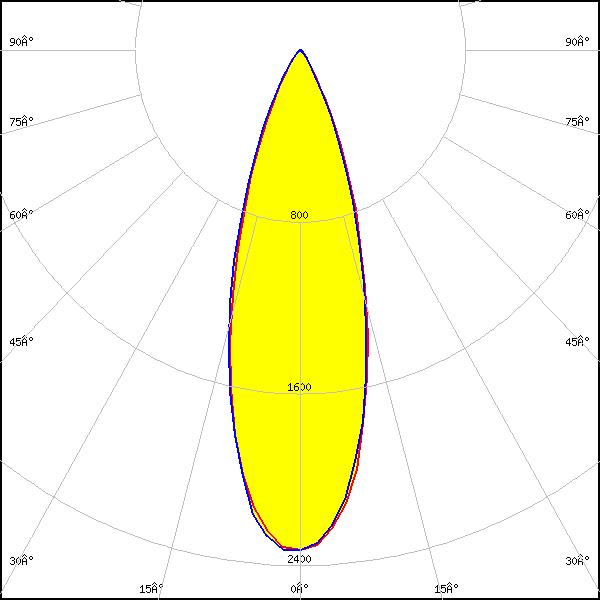

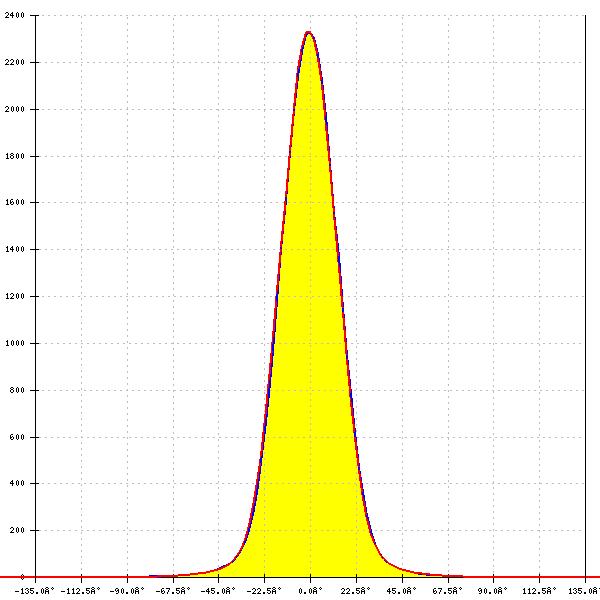

    LED: XB-H
    FWHM: 33°
    FWTM: 59°
    Peak intensity: 2.300 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

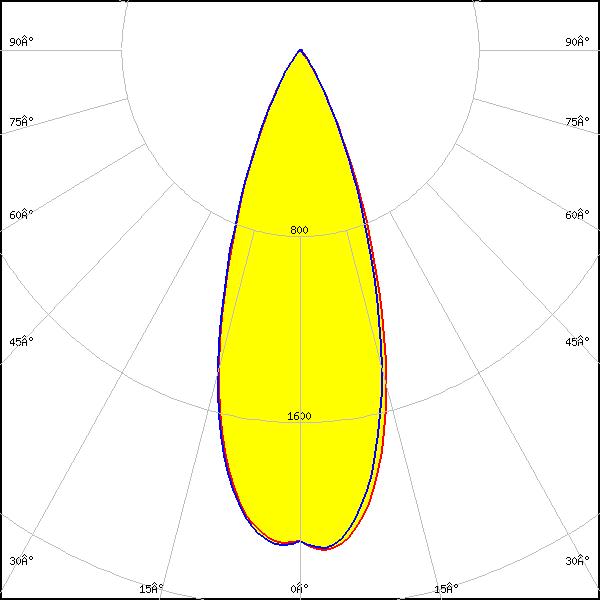

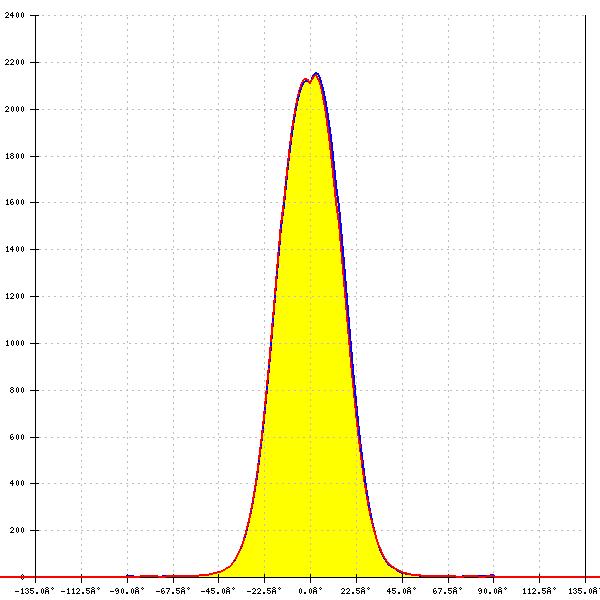

    LED: XHP35 HI
    FWHM: 28°
    FWTM: 61°
    Peak intensity: 2.150 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-E
    FWHM: 30°
    FWTM: 53°
    Peak intensity: 2.600 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

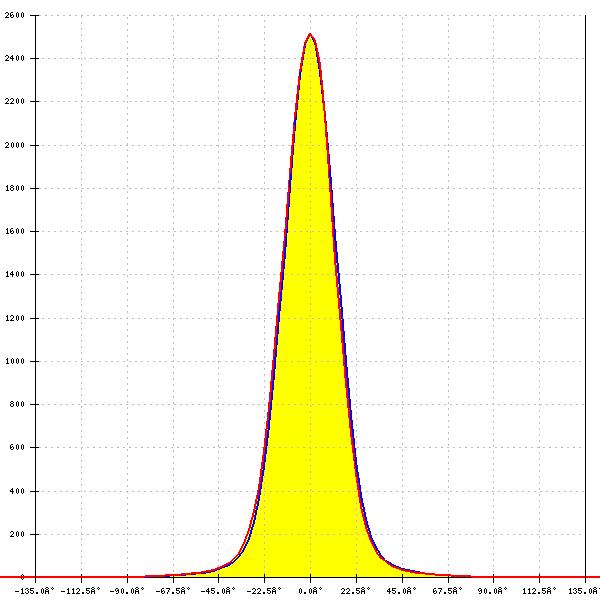

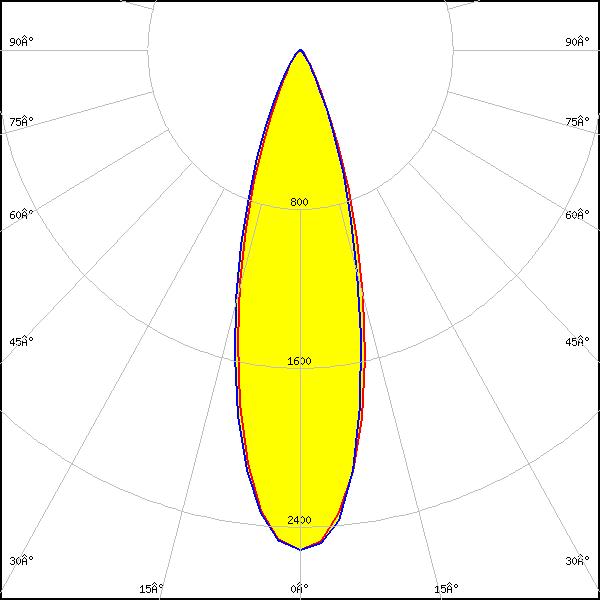

    LED: XP-E2
    FWHM: 31°
    FWTM: 56°
    Peak intensity: 2.500 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

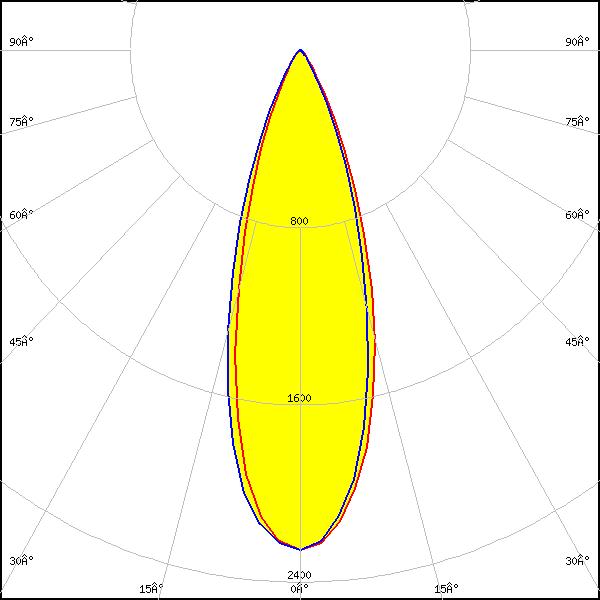

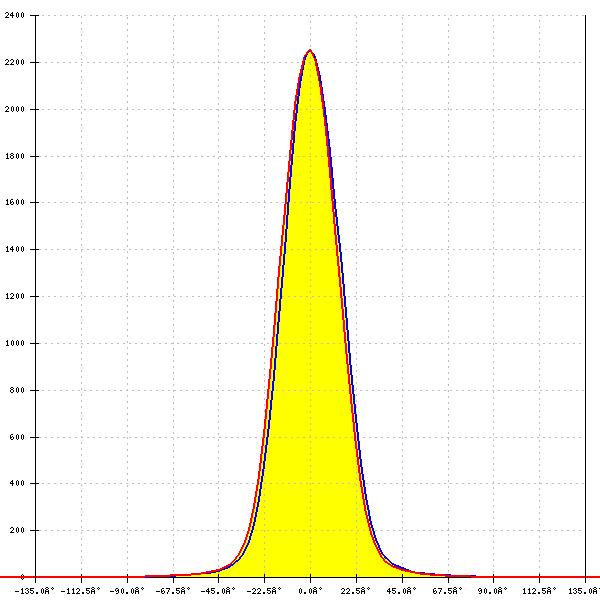

    LED: XP-G
    FWHM: 33°
    FWTM: 59°
    Peak intensity: 2.300 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

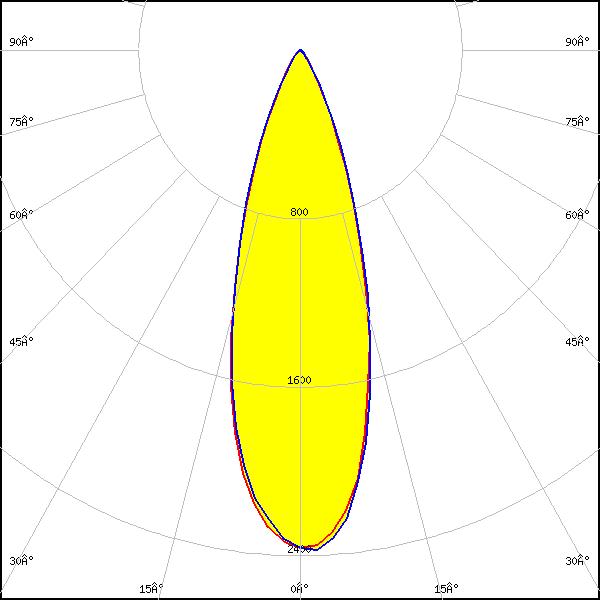

    LED: XP-G2
    FWHM: 33°
    FWTM: 58°
    Peak intensity: 2.400 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

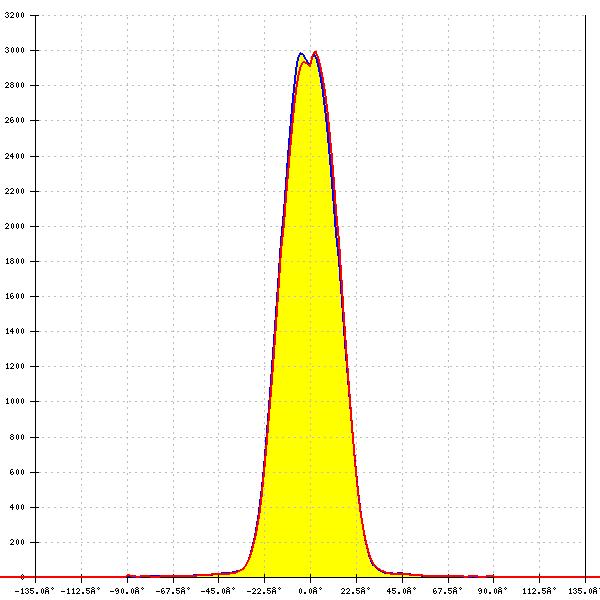

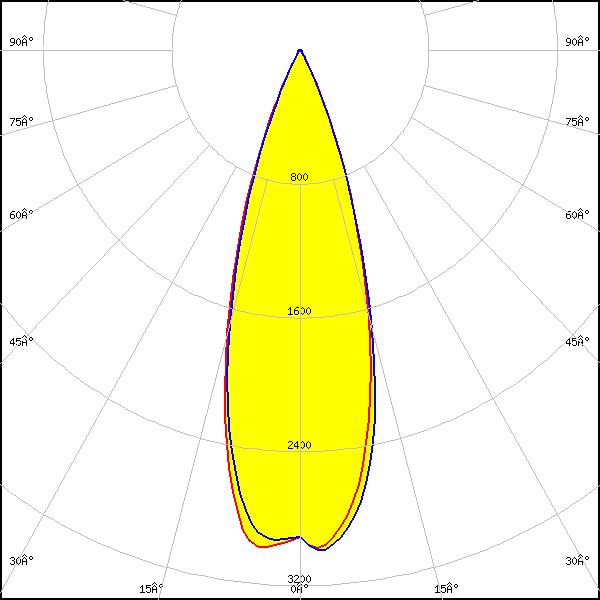

    LED: XP-G4 HI
    FWHM: 33° + 32°
    FWTM: 52° + 52°
    Peak intensity: 3.045 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

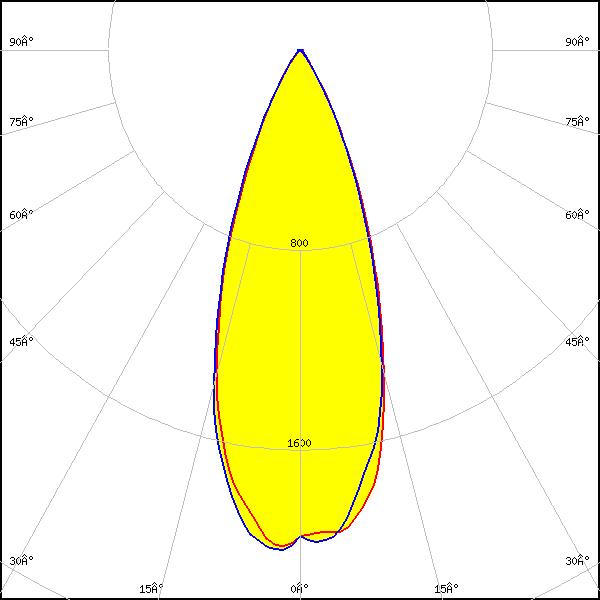

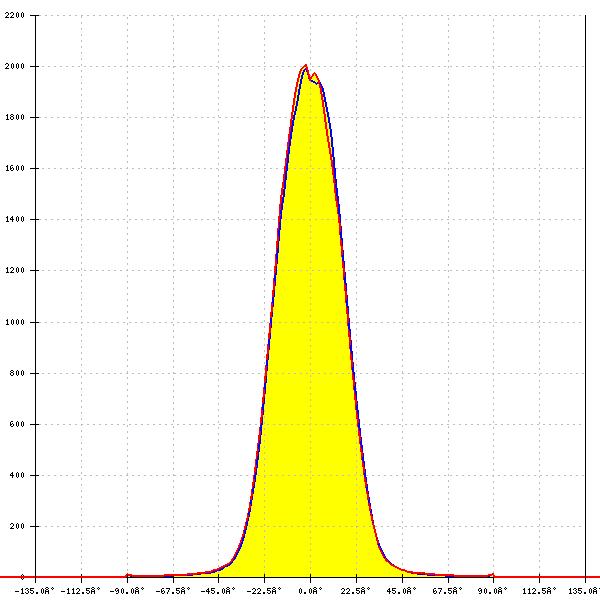

    LED: XP-L2
    FWHM: 38°
    FWTM: 63°
    Peak intensity: 2.045 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

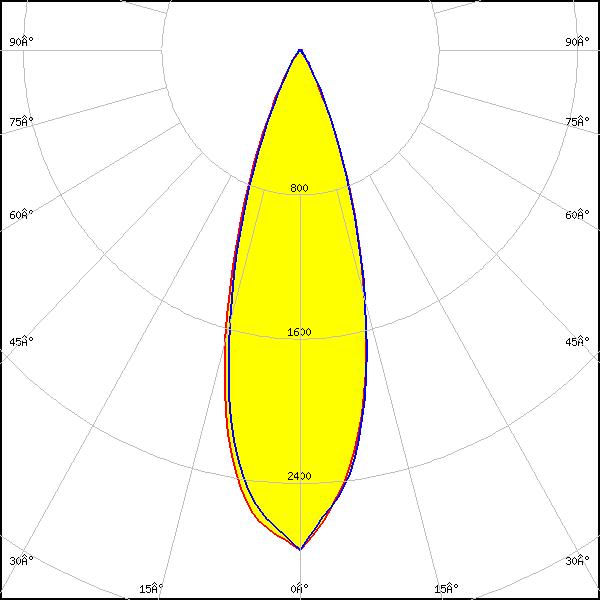

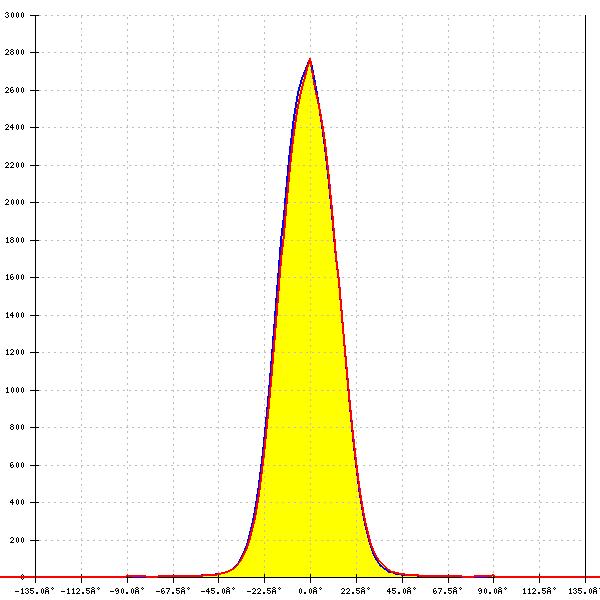

    LED: XQ-E HD
    FWHM: 32°
    FWTM: 56°
    Peak intensity: 2.770 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

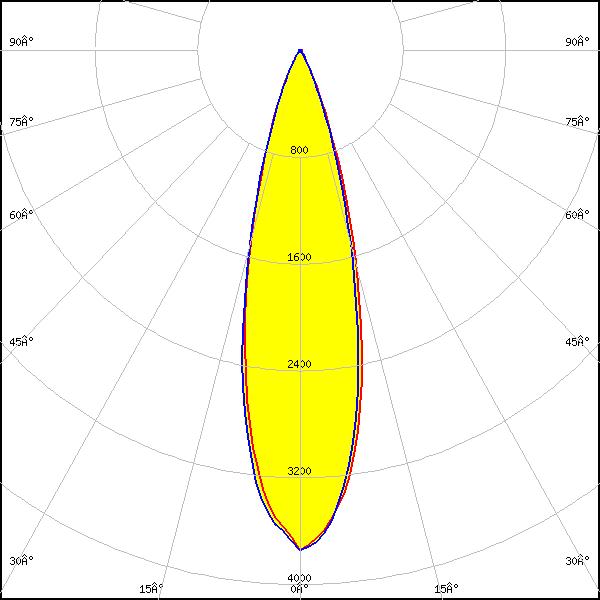

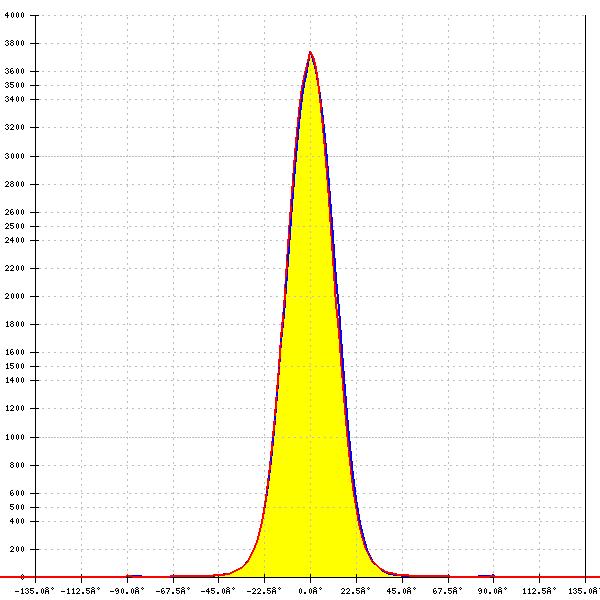

    LED: XQ-E HI
    FWHM: 27°
    FWTM: 49°
    Peak intensity: 3.744 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

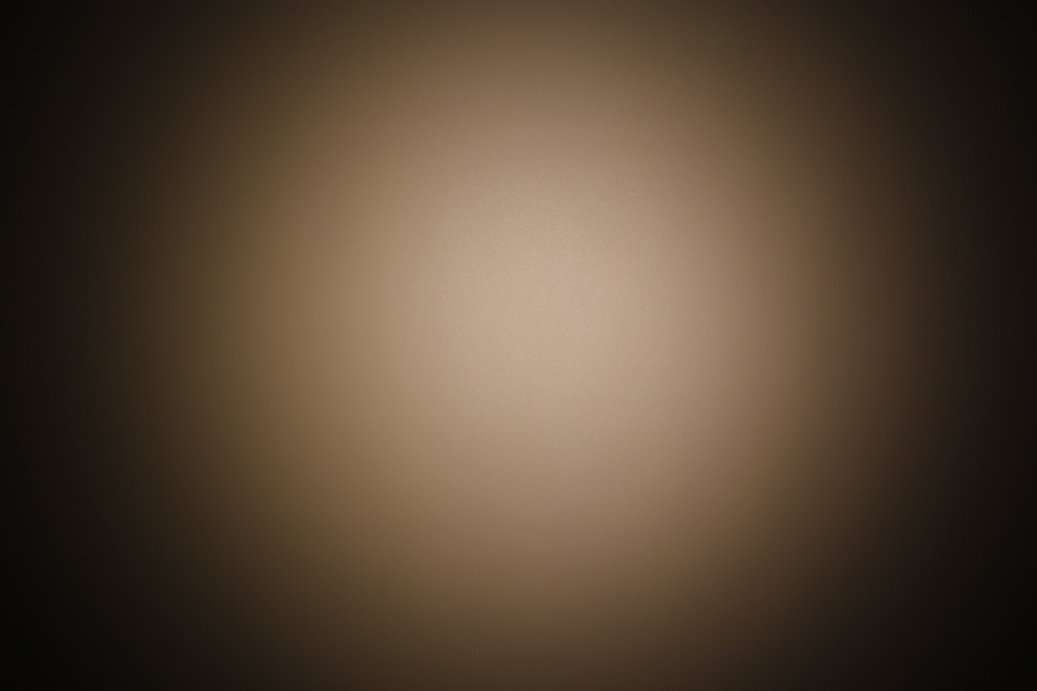

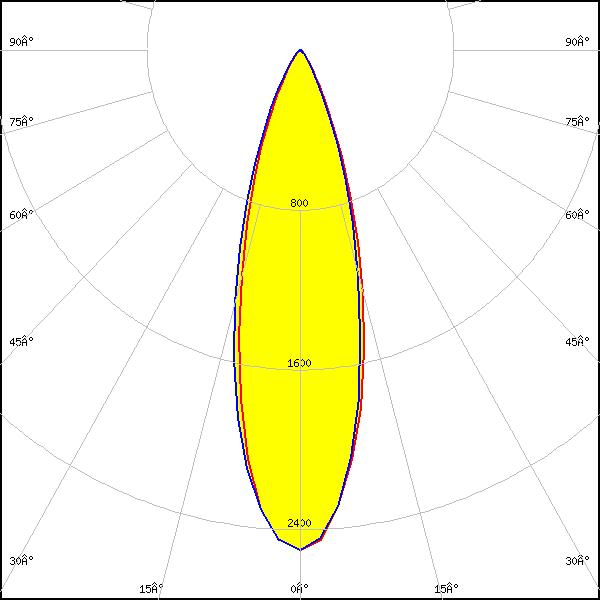

    LED: XT-E
    FWHM: 31°
    FWTM: 58°
    Peak intensity: 2.500 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

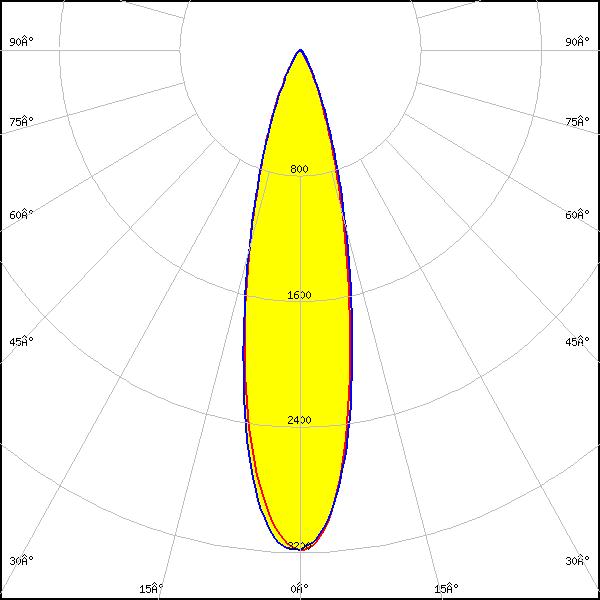

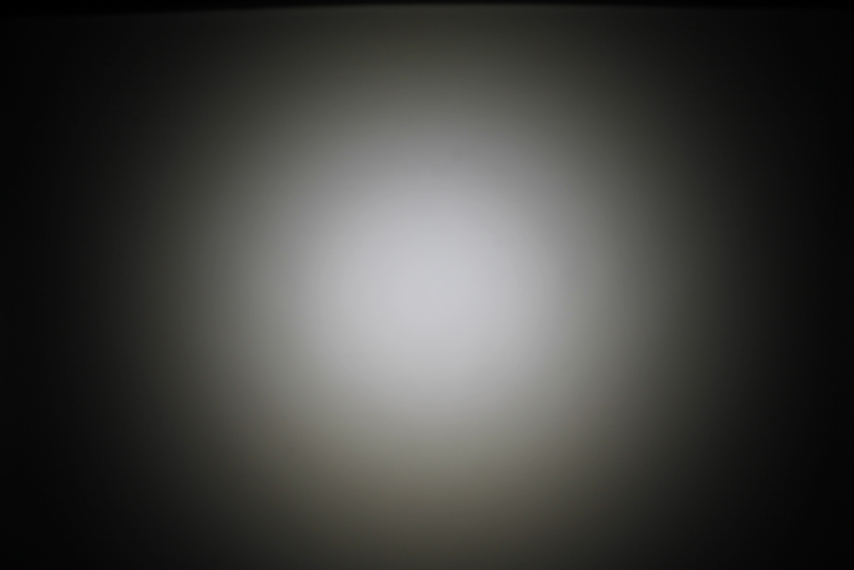

    LED: LUXEON 3030 2D (Round LES)
    FWHM: 25°
    FWTM: 51°
    Peak intensity: 3.200 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

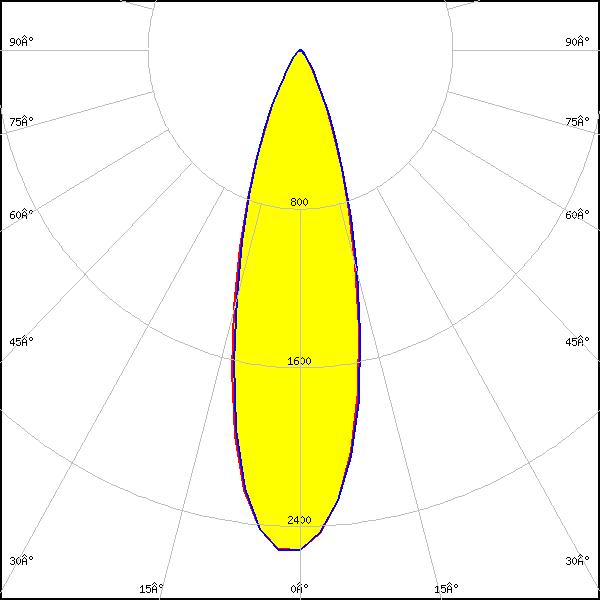

    LED: LUXEON TX
    FWHM: 30°
    FWTM: 57°
    Peak intensity: 2.500 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

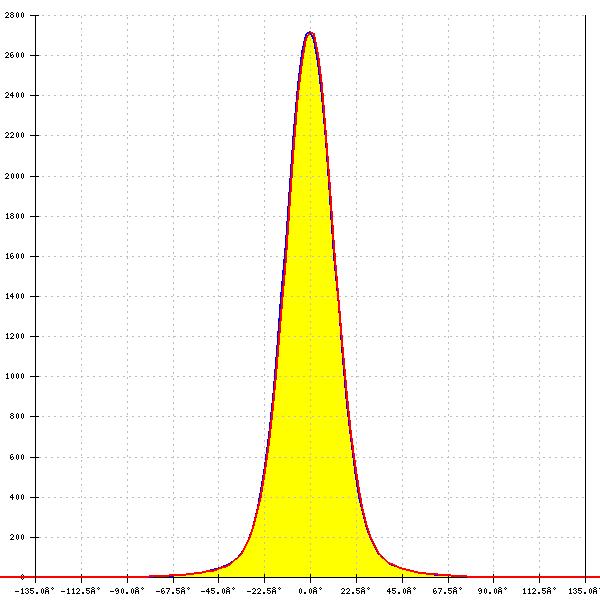

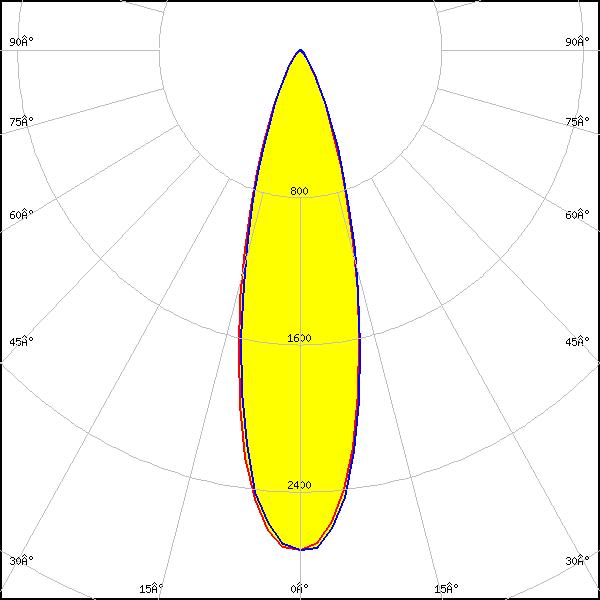

    LED: NCSxx19A
    FWHM: 29°
    FWTM: 55°
    Peak intensity: 2.700 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

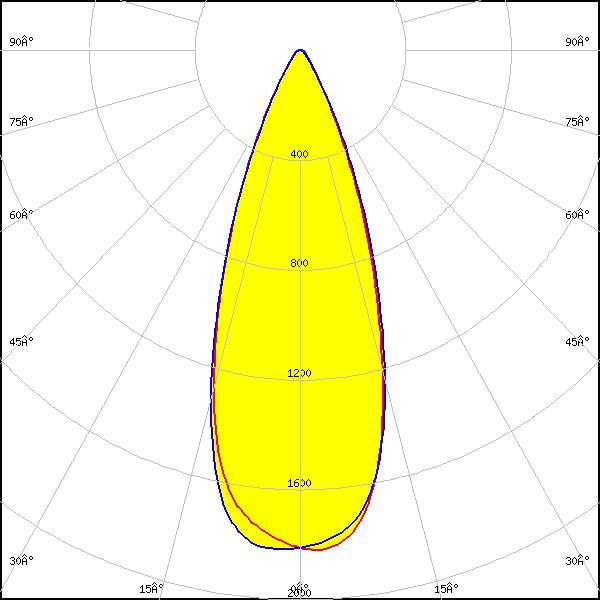

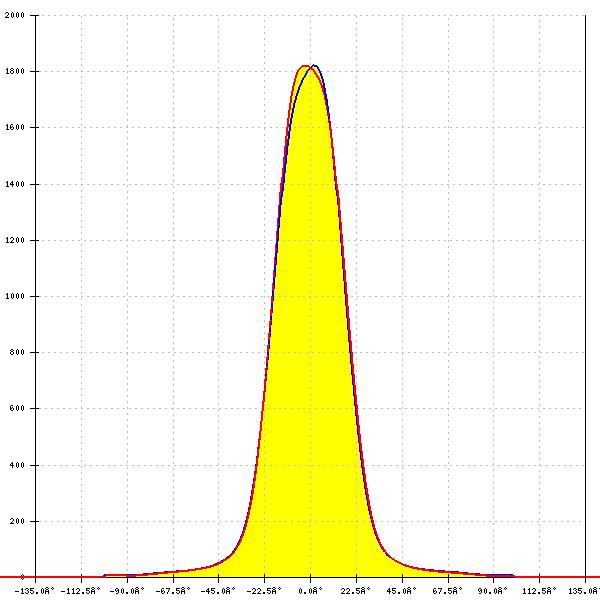

    LED: NVSW219D
    FWHM: 38°
    FWTM: 63°
    Peak intensity: 1.800 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

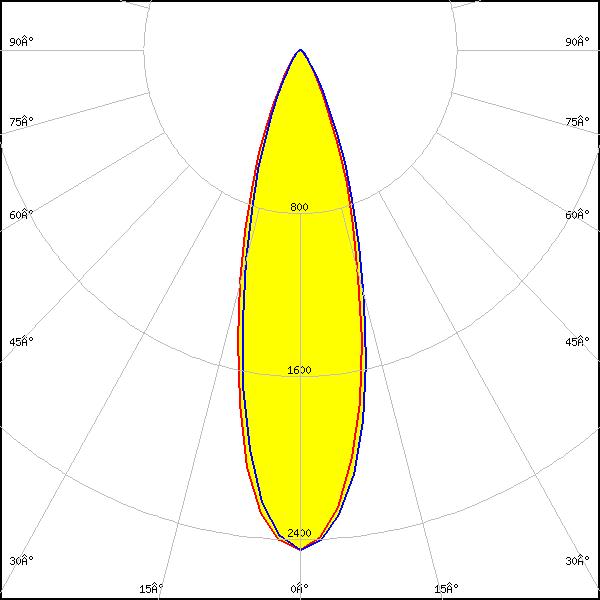

    LED: NVSxx19A
    FWHM: 30°
    FWTM: 58°
    Peak intensity: 2.500 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxx19B/NVSxx19C
    FWHM: 28°
    FWTM: 56°
    Peak intensity: 2.800 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Black
    FWHM: 22°
    FWTM: 40°
    Peak intensity: 5.300 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

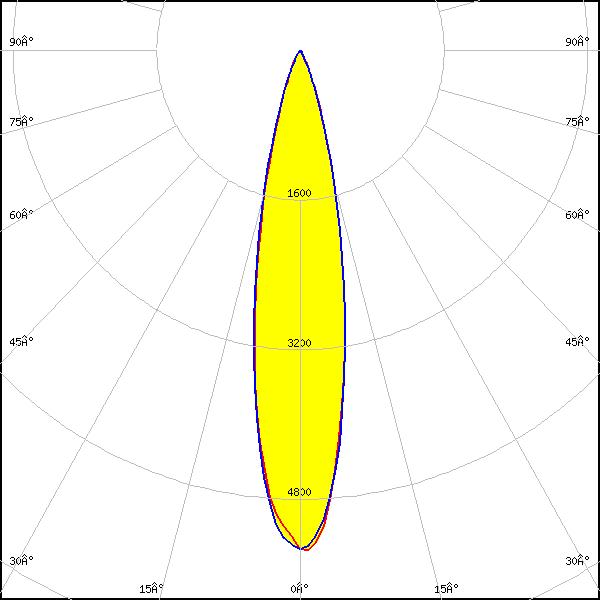

    LED: OSLON Black Flat (LUW HWQP)
    FWHM: 21°
    FWTM: 42°
    Peak intensity: 5.400 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

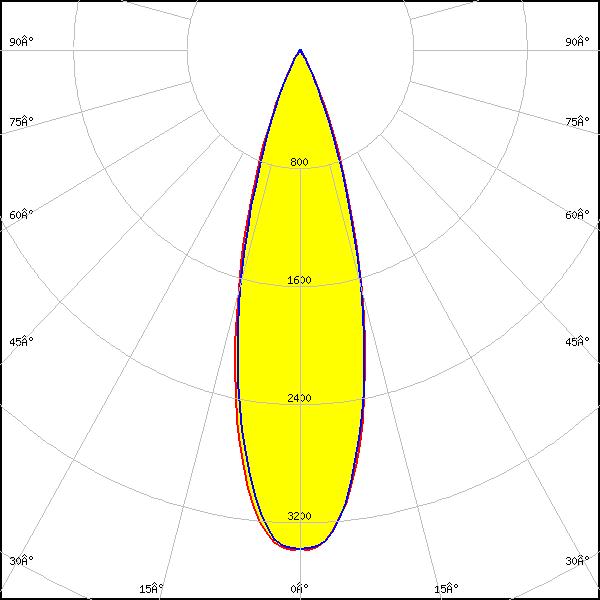

    LED: OSLON Boost HX (KW CULPM1.TG)
    FWHM: 30°
    FWTM: 51°
    Peak intensity: 3.411 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

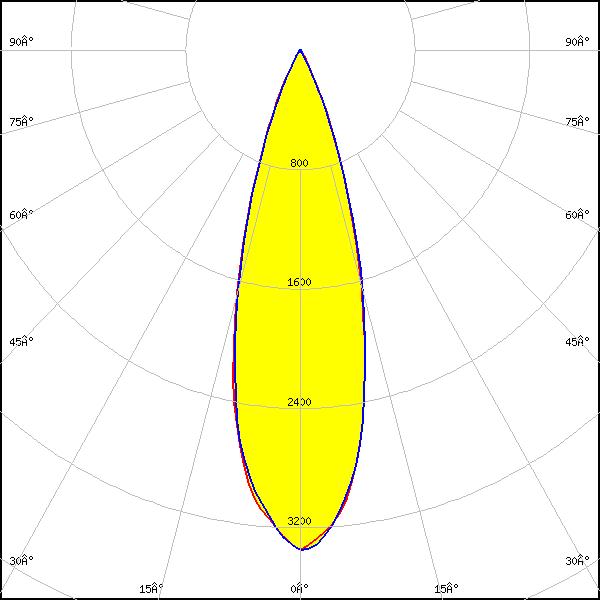

    LED: OSLON Signal
    FWHM: 30°
    FWTM: 51°
    Peak intensity: 3.387 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: Red

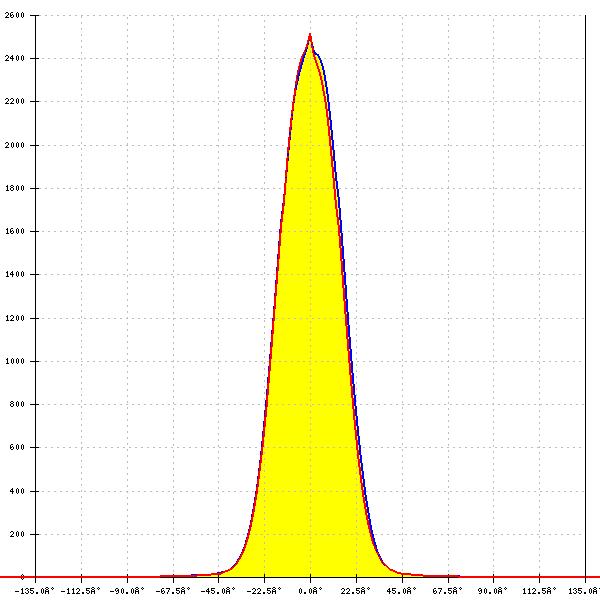

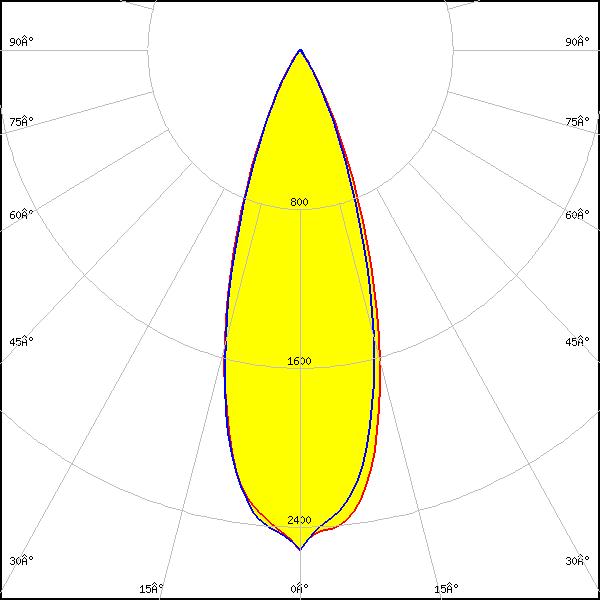

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 34°
    FWTM: 58°
    Peak intensity: 2.517 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

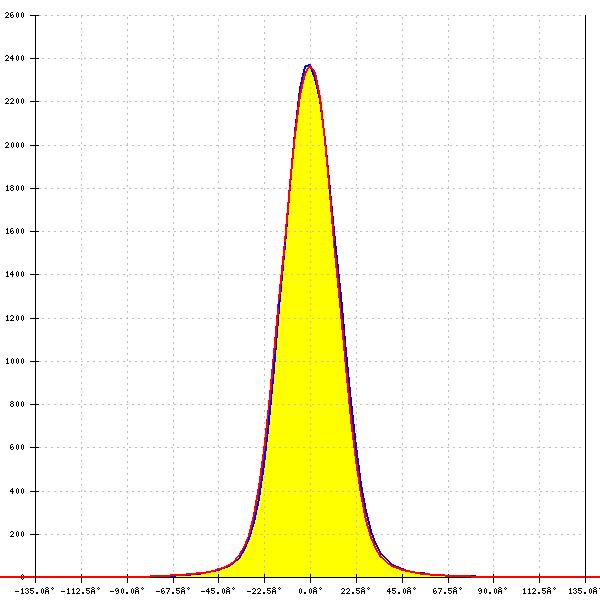

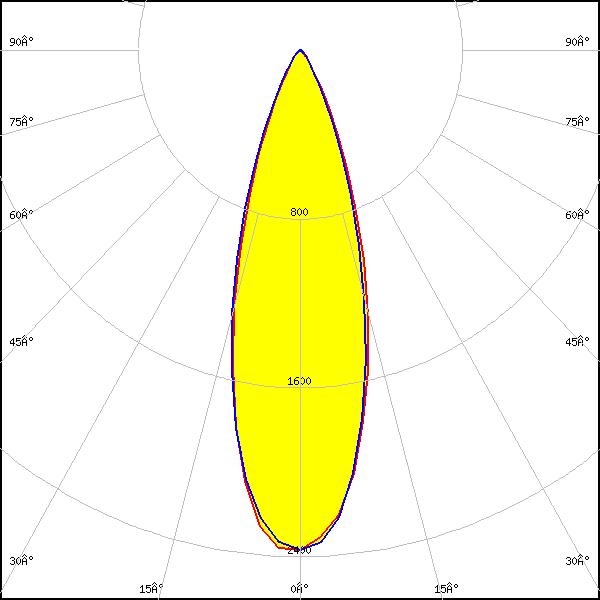

    LED: OSLON Square EC
    FWHM: 32°
    FWTM: 58°
    Peak intensity: 2.400 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

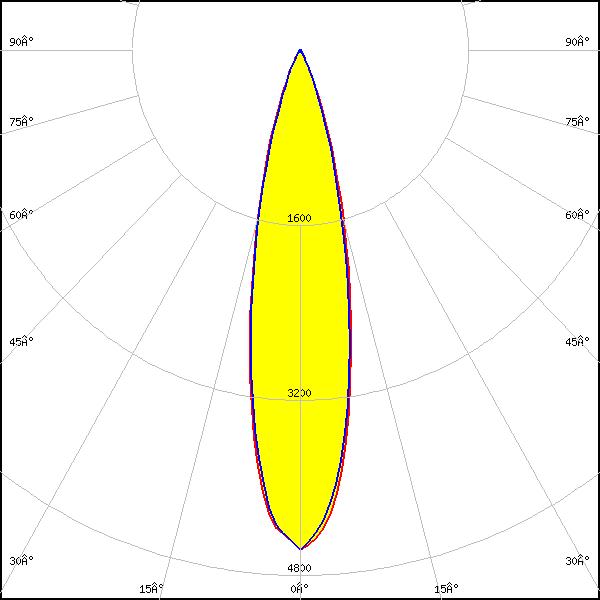

    LED: OSLON Square Flat
    FWHM: 24°
    FWTM: 45°
    Peak intensity: 4.580 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

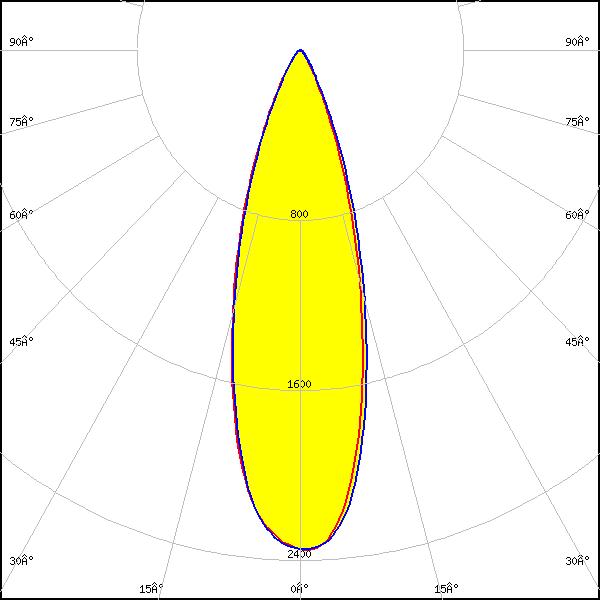

    LED: OSLON Square PC
    FWHM: 31°
    FWTM: 57°
    Peak intensity: 2.400 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

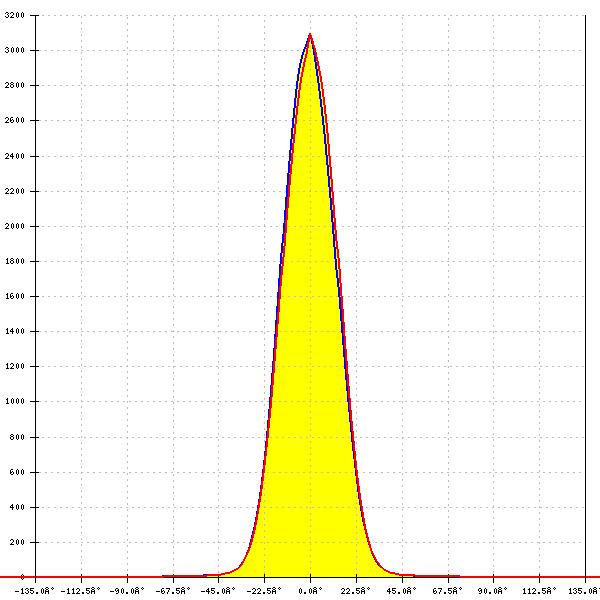

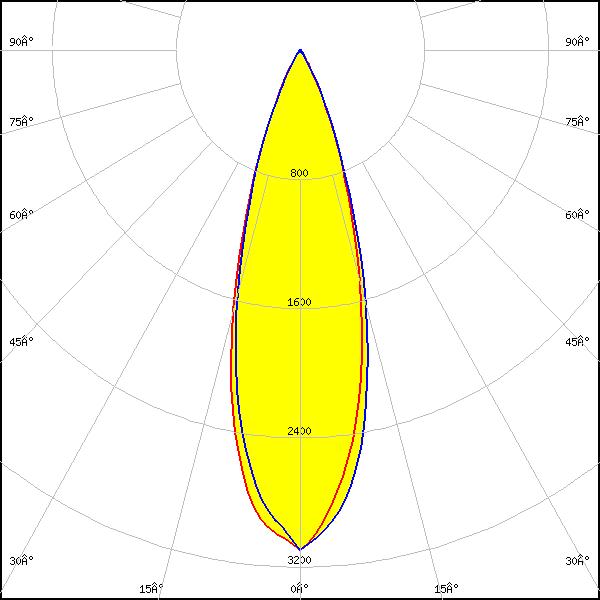

    LED: OSLON SSL 150
    FWHM: 30°
    FWTM: 53°
    Peak intensity: 3.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

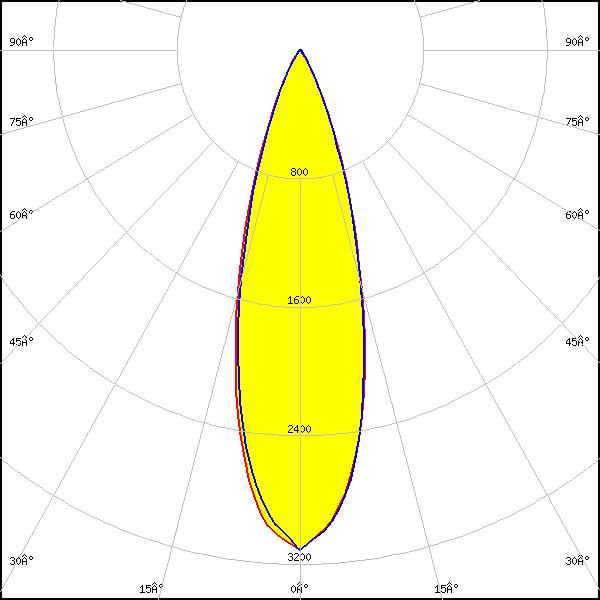

    LED: OSLON SSL 80
    FWHM: 29°
    FWTM: 53°
    Peak intensity: 3.113 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SFH 4770S
    FWHM: 27°
    FWTM: 56°
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

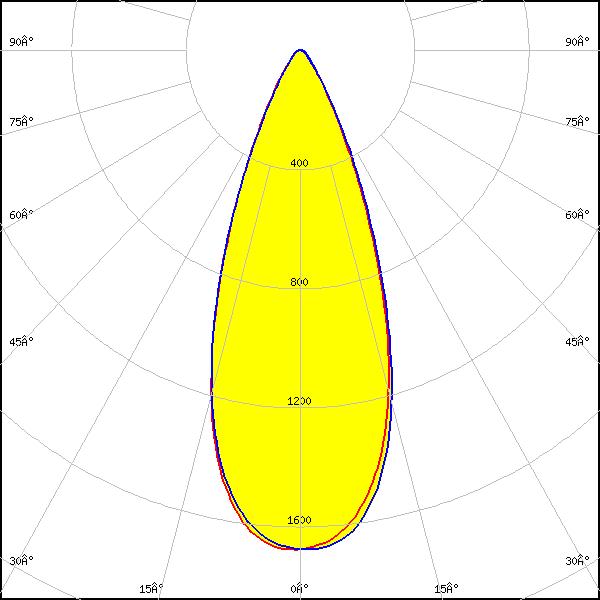

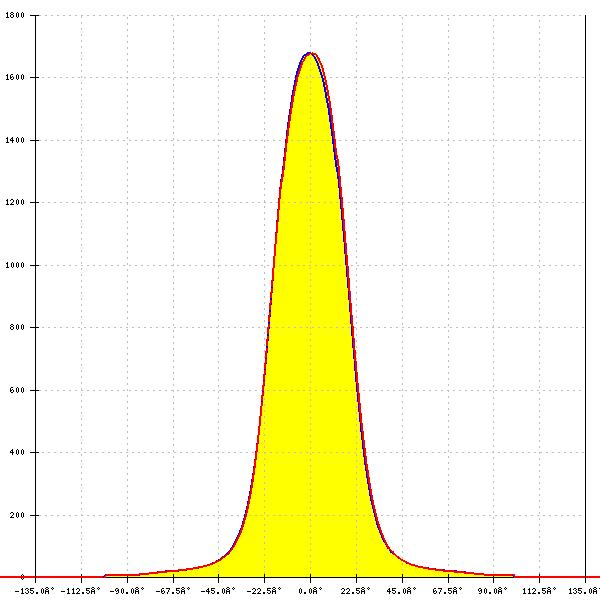

    LED: LH351D
    FWHM: 40°
    FWTM: 67°
    Peak intensity: 1.700 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

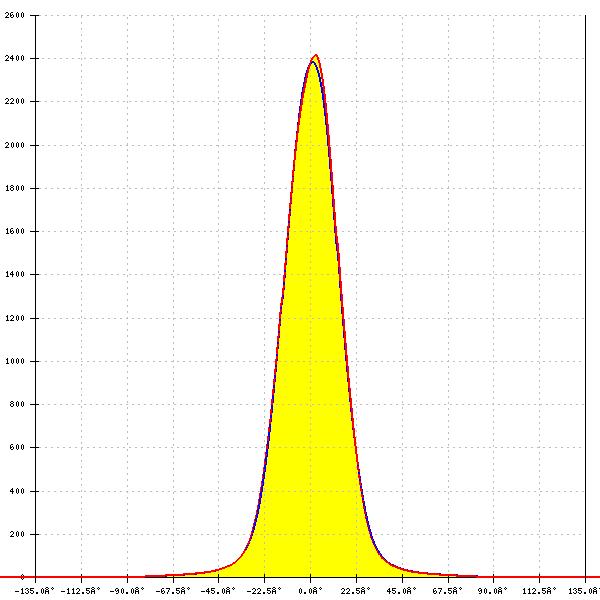

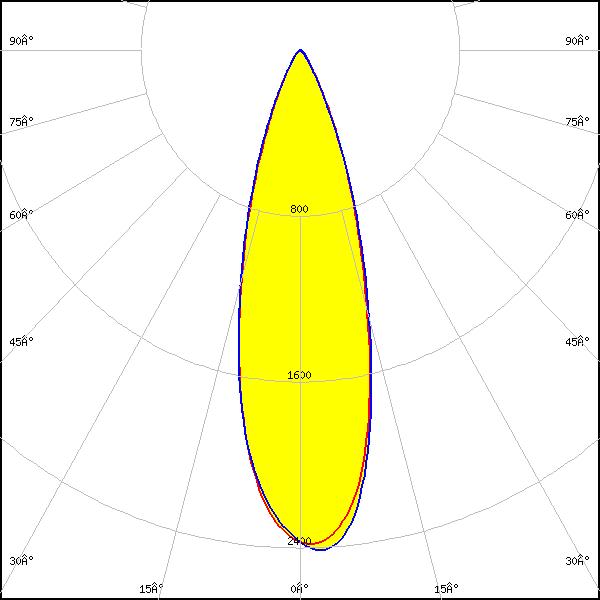

    LED: Z5M1/Z5M2
    FWHM: 30°
    FWTM: 56°
    Peak intensity: 2.430 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

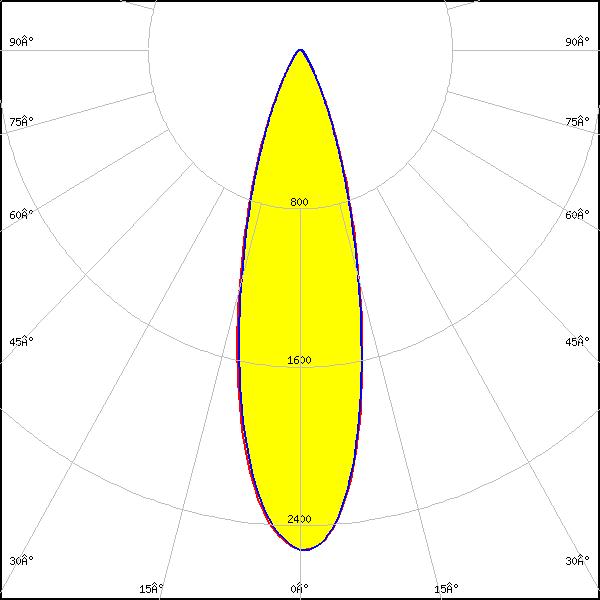

    LED: Z5M3
    FWHM: 29°
    FWTM: 57°
    Peak intensity: 2.500 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

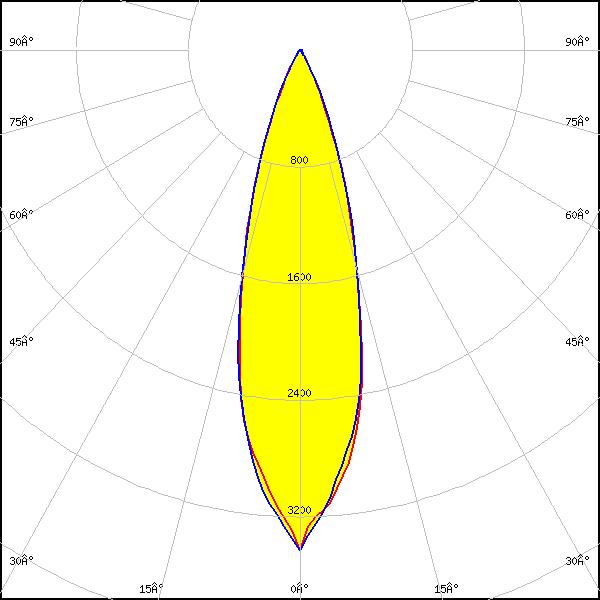

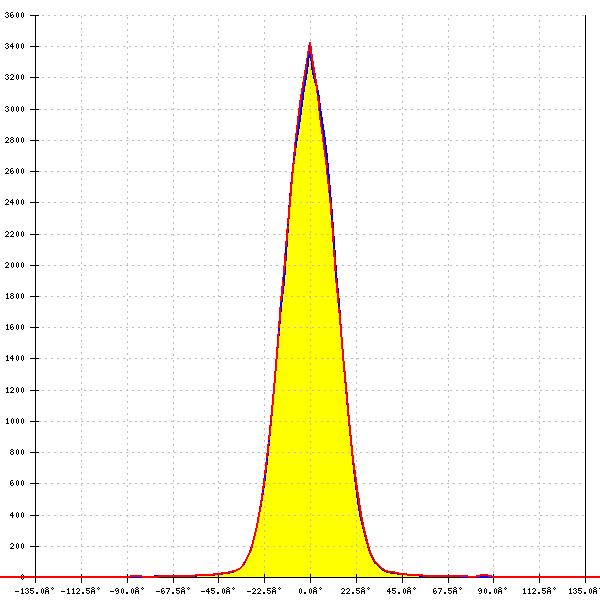

    LED: Z8Y22P
    FWHM: 29°
    FWTM: 51°
    Peak intensity: 3.420 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
